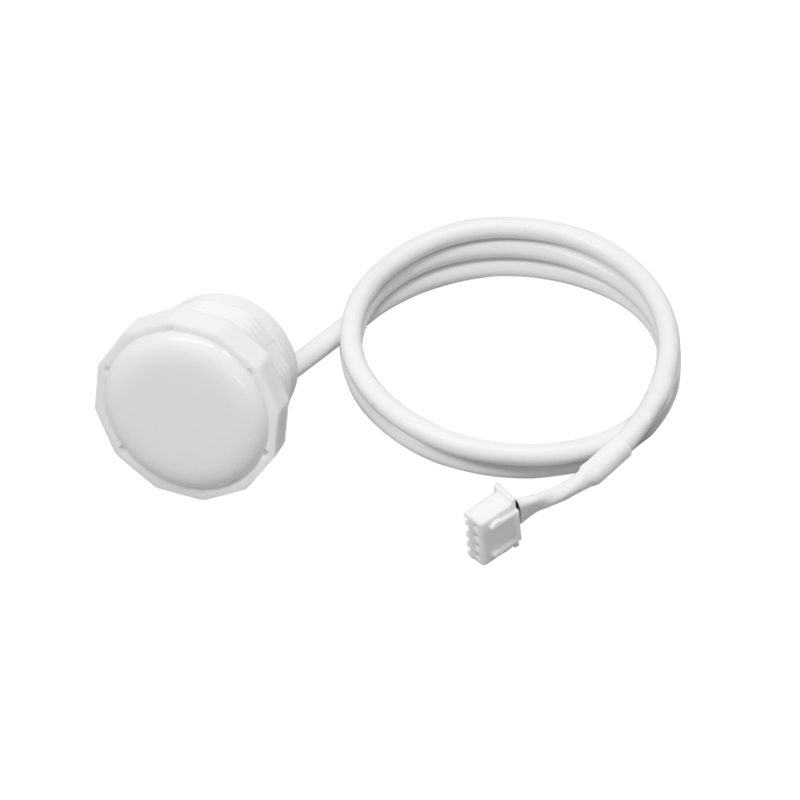

The XKC-LD500B microwave radar motion sensor is an advanced human presence sensor engineered by XINGKECHUANG, a leading manufacturer of high-quality microwave sensing solutions. Designed around cutting-edge 5.8GHz microwave radar technology, this sensor integrates a complete microwave circuit, intermediate frequency amplifier, signal processing system, and a powerful microcontroller unit (MCU) into a compact, robust package.
By combining sophisticated radar signal processing with a precision human detection algorithm, the XKC-LD500B microwave human body presence sensor delivers highly accurate presence sensing capabilities. It can reliably identify both active human movement and subtle micro-movements such as breathing or typing, making it ideal for demanding commercial and industrial applications where reliable detection is critical.
Key Features & Benefits
Long-Range Sensing with High Sensitivity

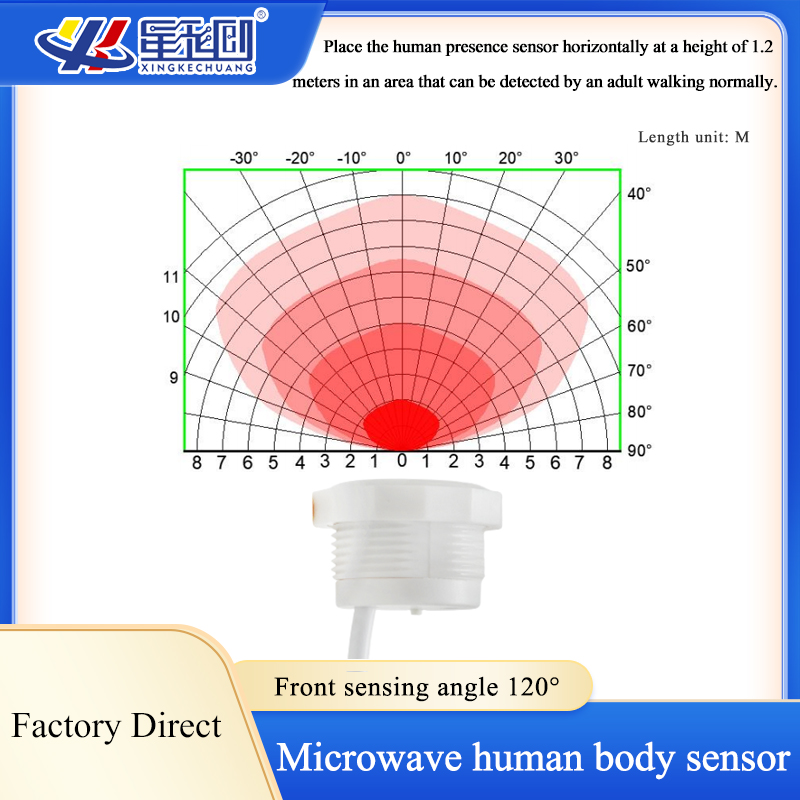

The XKC-LD500B human body presence sensor offers an impressive maximum sensing distance of 10 meters, with a factory default setting of 5 meters for optimal performance in most environments. Unlike traditional PIR sensors that only detect significant motion, this microwave sensor can detect even the slightest human movements, ensuring no false "empty room" readings when people are present but stationary. With a response time of less than 1500 milliseconds, it provides instant detection for time-sensitive applications.
One of the standout advantages of microwave radar technology is its exceptional resistance to environmental factors. The XKC-LD500B human existance motion sensor is not easily affected by dirt, dust, smoke, or temperature changes, which commonly cause false triggers in other sensor types. This makes it perfect for use in challenging industrial environments, warehouses, and outdoor applications where reliability is paramount.
Versatile Material Penetration
The 5.8GHz microwave signal can pass through a wide range of non-metallic materials including glass, plastic, ceramics, acrylic, rubber, and wood. This unique capability allows for discreet installation behind walls, ceilings, or fixtures without compromising detection performance, providing a clean, unobtrusive solution for commercial spaces.
Multiple Output Options for Flexible Integration
To accommodate diverse system requirements, the XKC-LD500B millimeter wave human presence sensor is available with multiple output configurations including NPN (normally open or normally closed), high/low level (positive or reverse output), relay, and UART serial port. This flexibility ensures seamless integration with virtually any control system, from simple lighting controllers to complex building automation systems.
Durable & Weather-Resistant Design
Housed in a rugged ABS+PC enclosure with IP67 waterproof rating, the XKC-LD500B millimeter wave sensor is built to withstand harsh operating conditions. It operates reliably within a temperature range of -10°C to 60°C, making it suitable for both indoor and outdoor installations. The sensor complies with international safety and environmental standards including GB/T2423, GB/4208-2017, GB/T17626.1-2006, and ROHS-2.0.
Applications
Smart Lighting Control Systems
The XKC-LD500B is ideal for automatic lighting control in offices, corridors, restrooms, parking garages, and warehouses. By detecting human presence and automatically turning lights on/off, it helps commercial facilities reduce energy consumption by up to 70% while improving user convenience.
Digital Advertising Displays
Integrate the sensor into digital signage and advertising displays to activate content only when people are present. This not only extends the lifespan of displays but also increases advertising effectiveness by ensuring content is seen by actual viewers.
Smart Security Solutions
Enhance security systems with reliable human presence detection. The sensor can trigger alarms, cameras, or lighting when unauthorized activity is detected, providing an extra layer of protection for commercial properties.
Smart Home Appliances
Incorporate the XKC-LD500B into various smart home appliances such as air conditioners, fans, and televisions to enable automatic activation and deactivation based on human presence, improving energy efficiency and user experience.
FAQ
What is the maximum detection range of the XKC-LD500B?
The XKC-LD500B has a maximum detection range of 10 meters. The factory default setting is 5 meters, which provides optimal performance for most standard applications. The detection range can be adjusted based on specific project requirements.
Can the sensor detect subtle human movements?
Yes, the XKC-LD500B is specifically designed to detect both active human movement and subtle micro-movements such as breathing, typing, or sitting still. This ensures reliable presence detection even when people are not actively moving around.
What materials can the microwave signal penetrate?
The 5.8GHz microwave signal can pass through most non-metallic materials including glass, plastic, ceramics, acrylic, rubber, and wood. It cannot penetrate metal objects, so installation should avoid placing metal barriers between the sensor and the detection area.

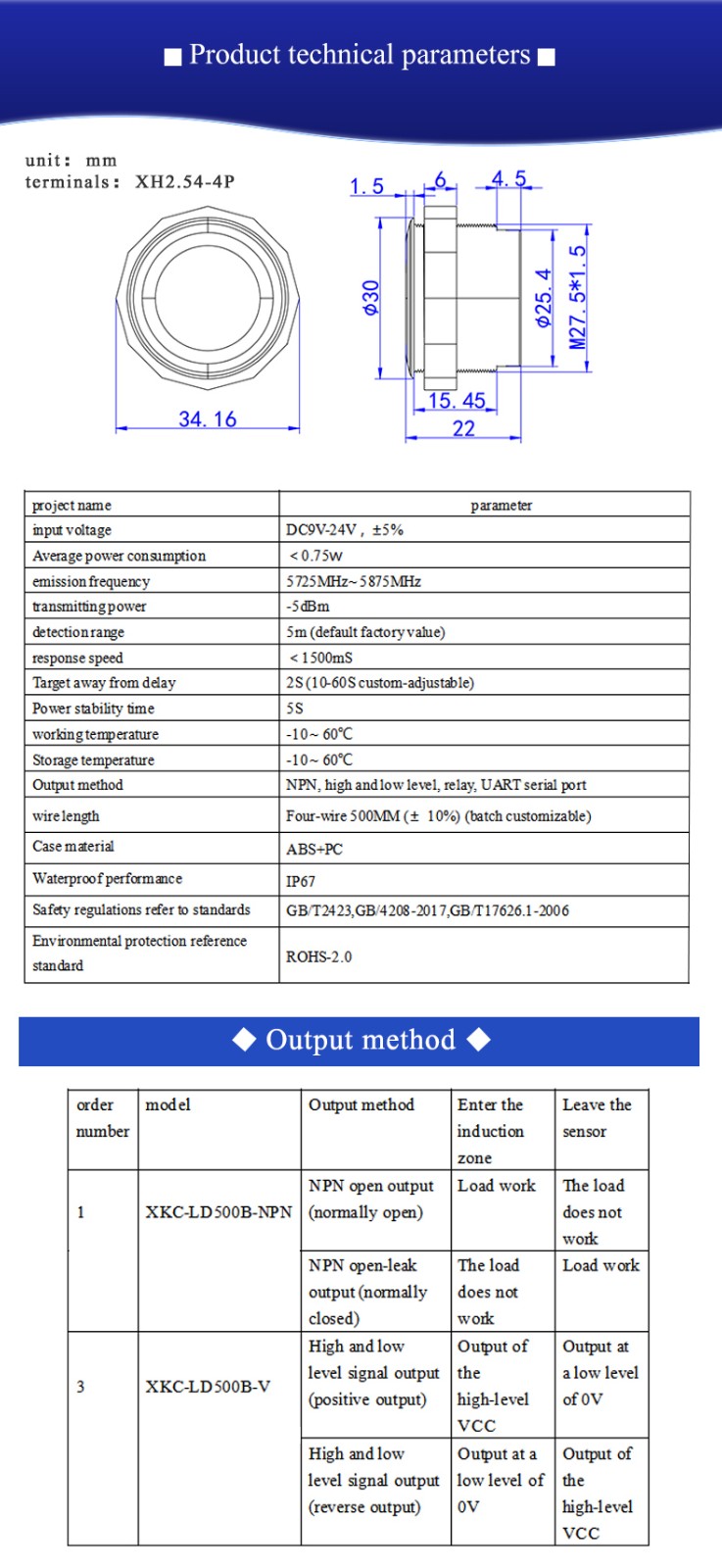

What output options are available for this sensor?
The XKC-LD500B is available with multiple output configurations to suit different integration needs: NPN open output (normally open or normally closed), high and low level signal output (positive or reverse), relay output, and UART serial port output.
