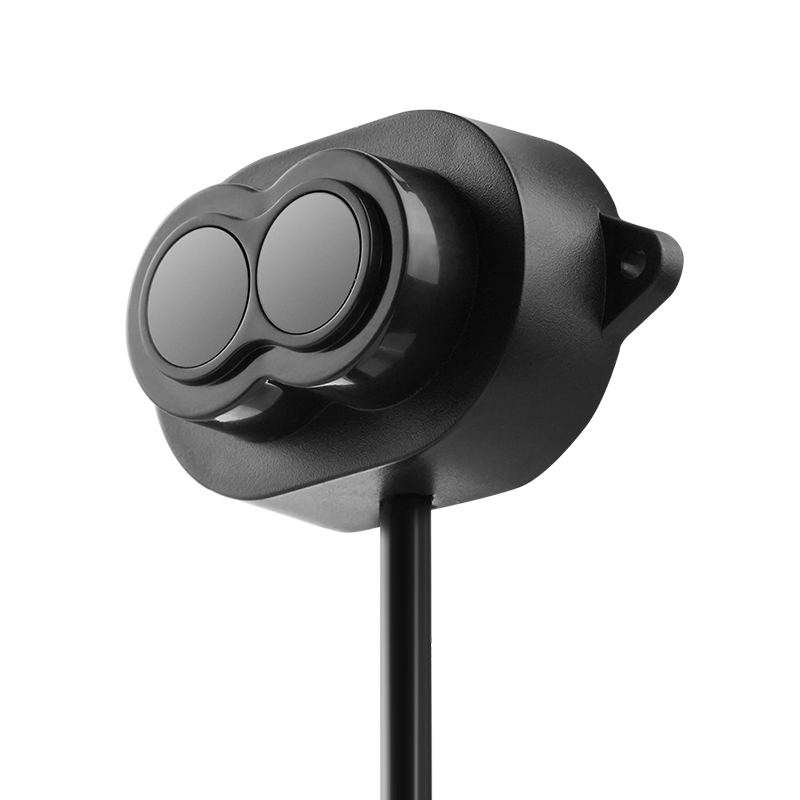

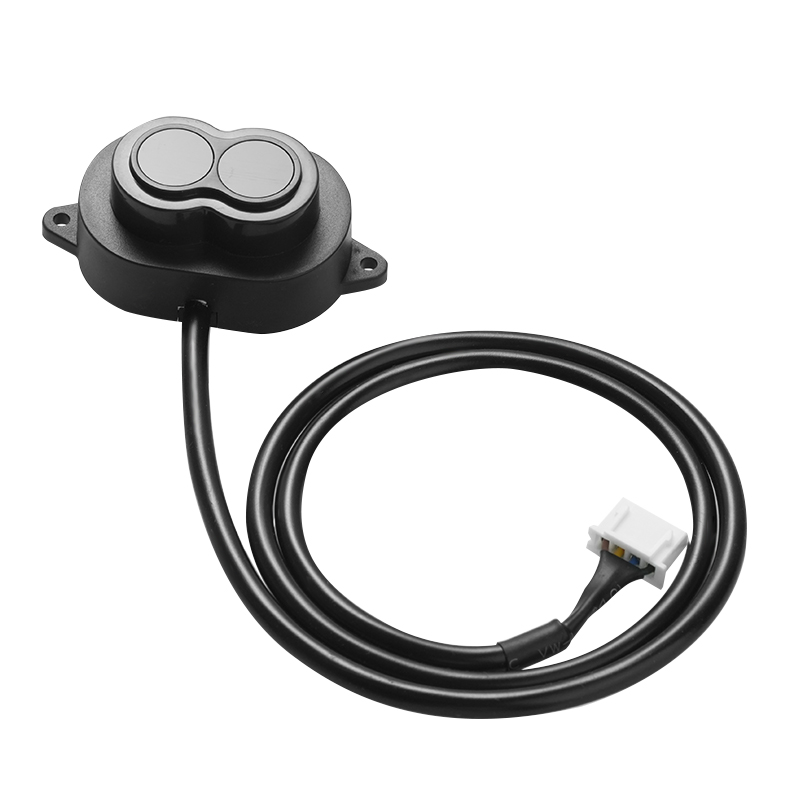

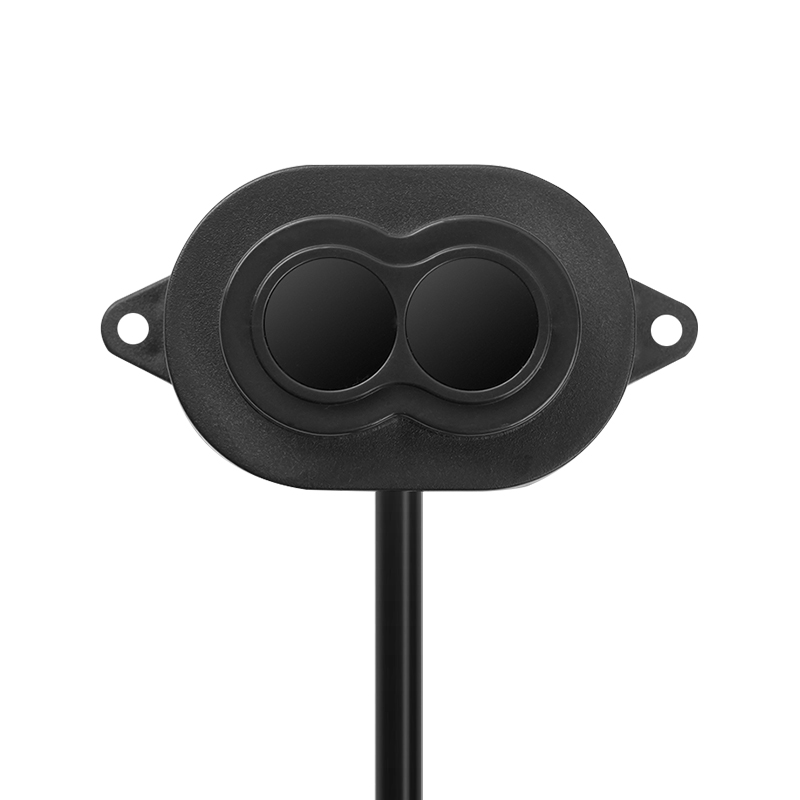

The XKC-KL800 laser distance sensor is a high-performance single-point ranging sensor based on the advanced Time-of-Flight (ToF) principle. Designed with unique optical and electrical engineering, this sensor delivers stable, accurate, and highly sensitive distance measurements even in challenging environmental conditions. It continuously monitors the distance to objects within its field of view (FOV) and triggers appropriate responses when objects enter or exit pre-set detection zones. The sensor features a versatile output system including UART serial port, high/low level, and NPN options, making it suitable for a wide range of commercial and industrial applications. With its compact design and robust construction, the XKC-KL800 offers an ideal solution for manufacturers and system integrators seeking reliable non-contact distance detection capabilities.
Key Features
The XKC-KL800 laser ranging sensor incorporates several advanced features that set it apart from conventional distance sensors:
Extended Indoor Range: Provides real-time distance measurements up to 8 meters in indoor environments, covering most commercial and residential application needs.
Superior Anti-Interference Performance: Engineered to operate reliably in direct sunlight, eliminating false triggers caused by ambient light conditions.
Comprehensive Protection Circuitry: Equipped with overcurrent, overvoltage, and reverse connection protection, ensuring long-term durability and preventing damage from electrical faults.
Multi-Layer Filter Cover: Features a specialized multi-layer filter cover that enhances sensing stability by reducing interference from dust, moisture, and other environmental factors.
Narrow Induction Angle: Offers a precise detection beam with a small induction angle, enabling accurate targeting of specific objects without cross-interference.
Non-Contact Intelligent Sensing: Provides safe and hygienic operation through contactless detection, making it ideal for sanitary and public applications.
Compact and Easy to Install: Features a small form factor that allows for flexible integration into space-constrained designs.
Multiple Output Options: Supports UART serial port, high/low level, and NPN output modes, simplifying integration with various control systems.
Applications
The XKC-KL800 laser ranging sensor finds extensive use across various commercial and industrial sectors:
Intelligent Sanitary Ware: Powers automatic faucets, touchless toilet flushing systems, and hand dryers, providing hygienic and water-efficient solutions for public restrooms.
Home Security and Automation: Enables burglar detection systems, automatic doorbells, stairway lighting control, and TV proximity reminders to prevent eye strain.
Smart Detection and Control: Used in automatic doors, advertising light boxes, and touchless trash cans, enhancing user convenience and energy efficiency.
Robotics and Drones: Provides obstacle detection and avoidance capabilities for autonomous robots and unmanned aerial vehicles.
Industrial Automation: Delivers real-time distance measurement for production line equipment, material handling systems, and process control applications.
FAQ
What is the maximum measuring distance of the XKC-KL800?
The XKC-KL800 can measure distances up to 8 meters in real-time when used in indoor environments. Outdoor performance may vary depending on lighting conditions and target reflectivity.
Can the XKC-KL800 be used outdoors in direct sunlight?
Yes, the XKC-KL800 features strong anti-interference capabilities and is specifically designed to operate reliably even in direct sunlight. Its multi-layer filter cover further enhances performance in outdoor conditions.
What output modes does the XKC-KL800 support?
The XKC-KL800 offers three output modes to suit different application requirements: UART serial port for digital communication, high/low level for simple switch control, and NPN for industrial control systems.
What protection features does the XKC-KL800 have?
The XKC-KL800 is equipped with comprehensive protection circuitry including overcurrent protection, overvoltage protection, and reverse connection protection. These features safeguard the sensor from electrical damage and ensure long-term reliable operation.
