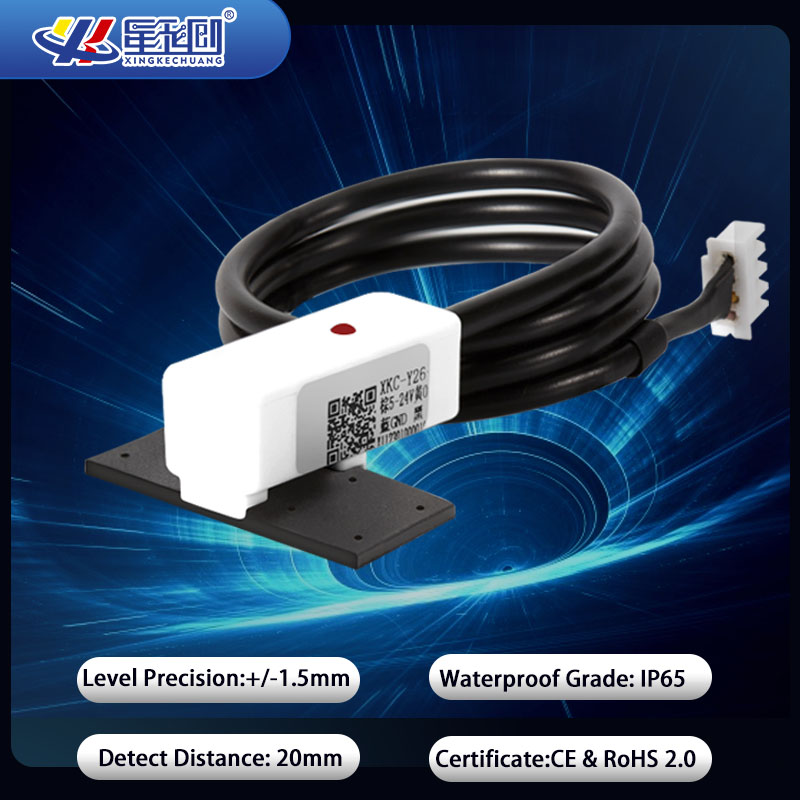

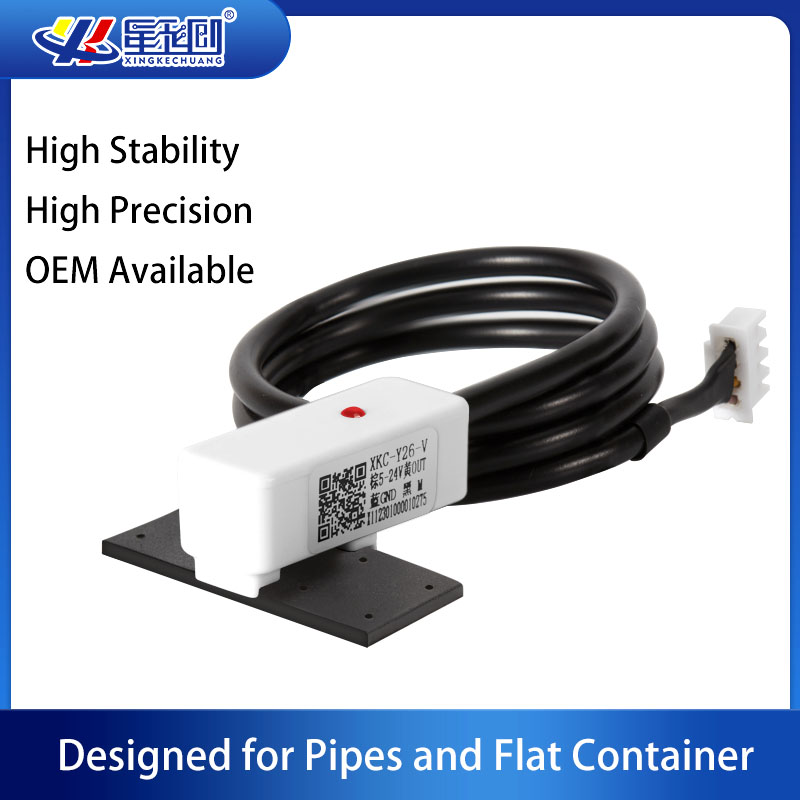

The XKC-Y26S is an advanced non-contact liquid level sensor designed and manufactured by XINGKECHUANG, a leading provider of industrial sensing solutions. This innovative sensor detects liquid levels by penetrating the outer wall of non-metallic containers and pipes, eliminating the need for direct contact with the liquid. This unique design makes it ideal for applications involving corrosive liquids, sterile environments, or situations where drilling into containers is impractical or impossible.
The XKC-Y26S uses advanced sensing technology to emit detection signals that penetrate non-metallic materials. When liquid is present at the sensor's mounting position, the signal is altered, triggering an output signal change. The sensor can detect liquid levels through various materials including plastic, glass, and ceramic, with a maximum wall thickness of up to 20mm. The induction sheet can be bent for easy installation, making it compatible with pipes and containers of various shapes and sizes.
The primary advantage of the XKC-Y26S is its non-contact operation. By detecting liquid from outside the container, the sensor avoids contact with corrosive substances such as strong acids and alkalis. This design also eliminates issues caused by scale, sediment, or other debris that can affect the performance of traditional contact sensors. The result is a longer service life and reduced maintenance requirements for industrial operators.
With a level accuracy of ±1.5mm, the XKC-Y26S delivers consistent and reliable liquid level detection. The sensor features a fast response time of 500mS, ensuring timely detection of liquid level changes. It operates reliably across a wide temperature range from -20 to 105℃ and can withstand humidity levels from 5% to 100%, making it suitable for use in challenging industrial environments.
The XKC-Y26S is compatible with a wide range of non-metallic containers and pipes with an outer diameter of ≥10mm. It works effectively with irregularly shaped containers including curved, arc-shaped, and cylindrical designs. The sensor is available with multiple output options: high and low level output, NPN switching value, and PNP switching value, allowing seamless integration with various control systems.
Constructed from PC V0 fireproof material, the XKC-Y26S is built to withstand harsh industrial conditions. It features an IP67 waterproof rating, providing complete protection against dust and immersion in water up to 1 meter deep. The sensor has a low power consumption of ≤5mA, making it energy-efficient and suitable for battery-powered applications. OEM customization is available to meet specific customer requirements.
The XKC-Y26S non-contact liquid level sensor finds applications across a wide range of industries where reliable liquid level detection is essential. It is particularly well-suited for:
Industrial Automation: Monitoring liquid levels in production processes, storage tanks, and cooling systems
Water Treatment: Detecting water levels in purification systems, wastewater tanks, and distribution pipes
Food & Beverage Processing: Ensuring proper liquid levels in mixing tanks, bottling lines, and storage containers
Medical Equipment: Monitoring fluid levels in diagnostic machines, sterilization equipment, and laboratory instruments
HVAC Systems: Detecting coolant levels in heating and cooling systems
Agriculture: Monitoring water levels in irrigation systems and livestock watering tanks
The XKC-Y26S is designed for use with non-metallic containers and pipes made from materials such as plastic, glass, and ceramic. It is compatible with containers of various shapes including curved, arc-shaped, and cylindrical designs.
The maximum sensing distance depends on the diameter of the pipe or container. For pipes with an outer diameter of 100mm or larger, the sensor can penetrate walls up to 20mm thick. For smaller pipes, the maximum sensing distance decreases accordingly.
The XKC-Y26S is available in three output versions: high and low level output (XKC-Y26S-V), PNP switching output (XKC-Y26S-PNP), and NPN switching output (XKC-Y26S-NPN). This allows compatibility with a wide range of control systems.
Yes, the XKC-Y26S has an IP67 waterproof rating, which means it is completely protected against dust and can be immersed in water up to 1 meter deep for up to 30 minutes. This makes it suitable for use in wet and humid environments.
The XKC-Y26S operates reliably within a temperature range of -20 to 105℃, making it suitable for use in both cold and hot industrial environments.
item name | specification | |||
XKC MPN | XKC-Y26S-V | XKC-Y26S-PNP | XKC-Y26S-NPN | |
DC input voltage(Vin) | (DC 5-24V) | (DC 5-12V) (DC 24V) | (DC 5-12V) (DC 24V) | |
output method | high&low level | on-off(high level on) | on-off(low level on) | |
consumption current | ≤5mA | |||
output voltage(high level) | Vin | |||
output voltage(low level) | 0V | |||
output current | ≤100mA | |||
response time | 500mS | |||
working temperature | -20~105℃ | |||
Sensing distance | sensed pipe OD(mm) | sensed container thickness L(mm) | ||
D≥100 | 20 ± 2 | |||
100>D≥80 | 15 ± 2 | |||
80>D≥60 | 12 ± 1.5 | |||
60>D≥40 | 7 ± 1.0 | |||
40>D≥30 | 5 ± 1.0 | |||
30>D≥20 | 3 ± 1.0 | |||
20>D≥10 | 1.5 ± 0.5 | |||
applicable pipe OD | ≥10mm | |||
level accuracy | ±1.5mm | |||
humidity | 5%~100% | |||
material | PC V0 fireproof | |||
waterproof | IP67 | |||
safety certificate | CE | |||
environment certificate | ROHS-2.0 | |||
