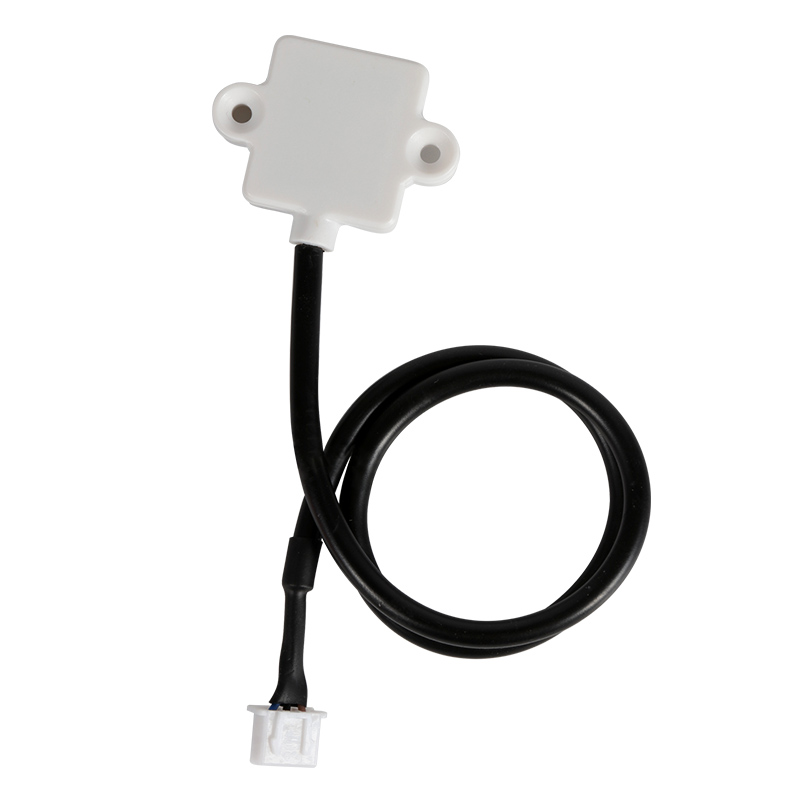

The XKC-Y23A is a high-performance, cost-effective non-contact liquid level sensor specifically designed for non-metallic containers. It eliminates the need for direct contact with liquids, making it ideal for applications where hygiene and contamination prevention are critical. With its ultra-compact and ultra-thin design, this sensor can be seamlessly integrated into space-constrained devices, providing reliable and accurate liquid level detection. Available in two output variants—NPN output (XKC-Y23A-NPN) and high/low level output (XKC-Y23A-V)—both models operate on a wide DC 3.3-5V power supply, ensuring compatibility with most common electronic systems. Widely adopted in the small household appliance industry, the XKC-Y23A offers an optimal balance of performance, ease of installation, and affordability for commercial clients and manufacturing partners.
Model: XKC-Y23A-NPN (DC 3.3-5V) — NPN Output
Model: XKC-Y23A-V (DC 3.3-5V) — High/Low Level Output
Key Benefits for Commercial Clients

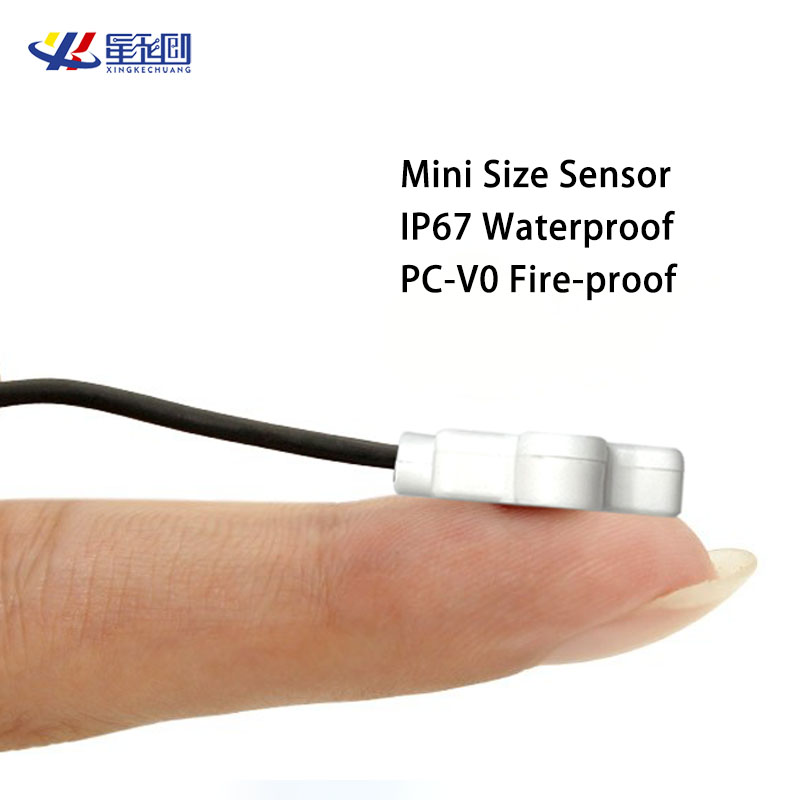

Ultra-Compact & Space-Saving Design

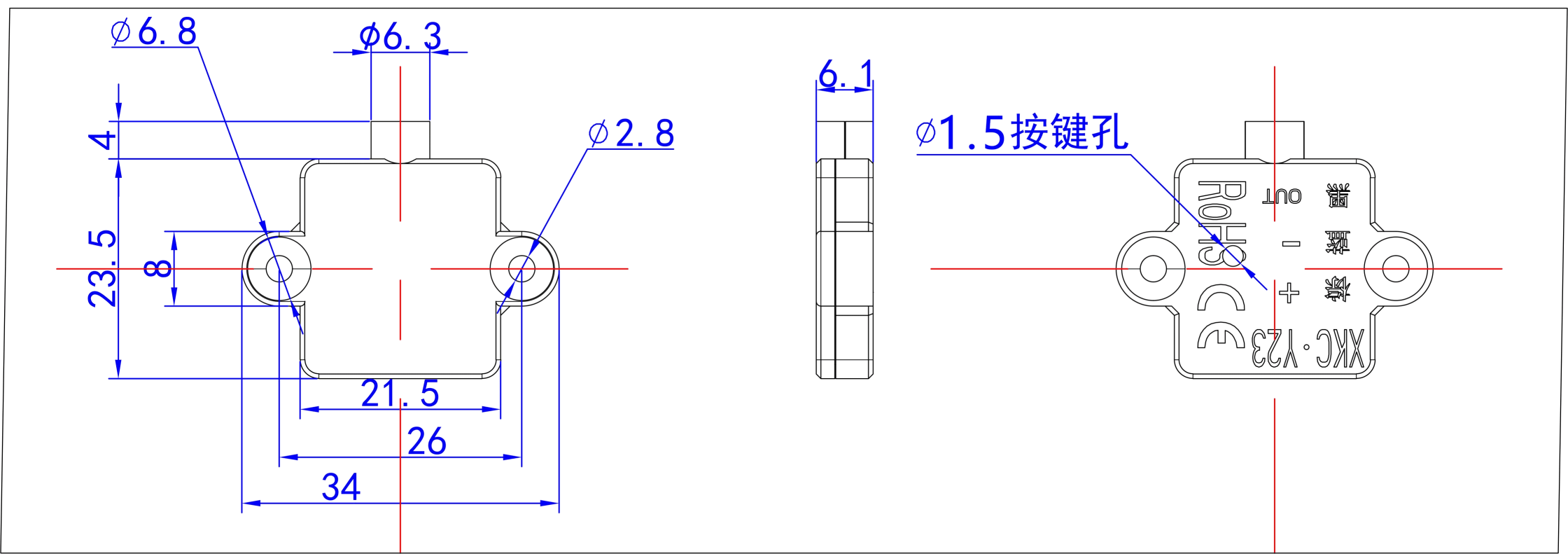

The XKC-Y23A features an exceptionally small and ultra-thin form factor, allowing it to be installed in tight spaces where traditional liquid level sensors cannot fit. This design flexibility enables original equipment manufacturers (OEMs) to optimize the internal layout of their products, reduce overall device size, and simplify structural design without compromising on detection performance. The screw-fixed mounting method further enhances installation convenience, requiring minimal tools and time to set up, which significantly reduces labor costs for industrial integrators.
Unlike contact-based sensors that come into direct contact with liquids, the XKC-Y23A detects liquid levels through non-metallic container walls. This non-contact approach eliminates the risk of liquid contamination, making it perfect for food and beverage applications such as coffee machines and water dispensers. It also prevents sensor corrosion and wear caused by prolonged exposure to liquids, significantly extending the sensor's service life and reducing long-term maintenance costs.
Low Power Consumption for Energy Efficiency
With a current consumption of only 5mA±2mA, the XKC-Y23A is extremely energy-efficient. This low power draw helps reduce the overall energy consumption of the devices it is integrated into, lowering operational costs for commercial clients. It is particularly beneficial for battery-powered or energy-sensitive applications where power efficiency is a top priority.
Constructed from PC-V0 fire-resistant material and rated IP67 waterproof, the XKC-Y23A can withstand harsh operating conditions. It operates reliably within a temperature range of -20-105℃ and humidity levels up to 100%, making it suitable for use in both indoor and outdoor environments. The sensor also holds CE safety certification and ROHS-2.0 environmental certification, ensuring compliance with global industry standards.
Typical Applications
The XKC-Y23A non-contact liquid level sensor is widely used in various industries where accurate and reliable liquid level detection is required. Its compact design, non-contact operation, and low power consumption make it an ideal choice for the following applications:
Coffee Machines: Ensures precise water level control for consistent brewing results, while non-contact detection maintains strict hygiene standards.
Water Dispensers: Monitors water levels to prevent dry running and overflow, improving device safety and reliability.
Water Purifiers: Detects filter and tank water levels to alert users when refills or replacements are needed.
Printers: Monitors ink levels to prevent printing interruptions and ensure continuous operation.
For manufacturing partners looking to integrate liquid level detection into their products, the XKC-Y23A offers a customizable and cost-effective solution that meets the highest industry standards.
FAQ
What output types are available for the XKC-Y23A?
The XKC-Y23A is available in two output variants: XKC-Y23A-NPN with NPN output and XKC-Y23A-V with high/low level output. Both models operate on a DC 3.3-5V power supply, providing flexibility for different system requirements.
What is the maximum sensing distance of the XKC-Y23A?
The XKC-Y23A has a maximum sensing distance of ≤15mm, making it suitable for detecting liquid levels through non-metallic container walls up to 15mm thick.
Is the XKC-Y23A waterproof?
Yes, the XKC-Y23A has an IP67 waterproof rating, meaning it is fully protected against dust immersion and can withstand temporary submersion in water up to 1 meter deep for 30 minutes.
What types of containers can the XKC-Y23A detect?
The XKC-Y23A is designed for non-metallic containers such as plastic, glass, and ceramic. It cannot detect liquid levels through metallic containers.
What is the working temperature range of the XKC-Y23A?
The XKC-Y23A operates reliably within a temperature range of -20-105℃, making it suitable for use in a wide variety of environmental conditions.
