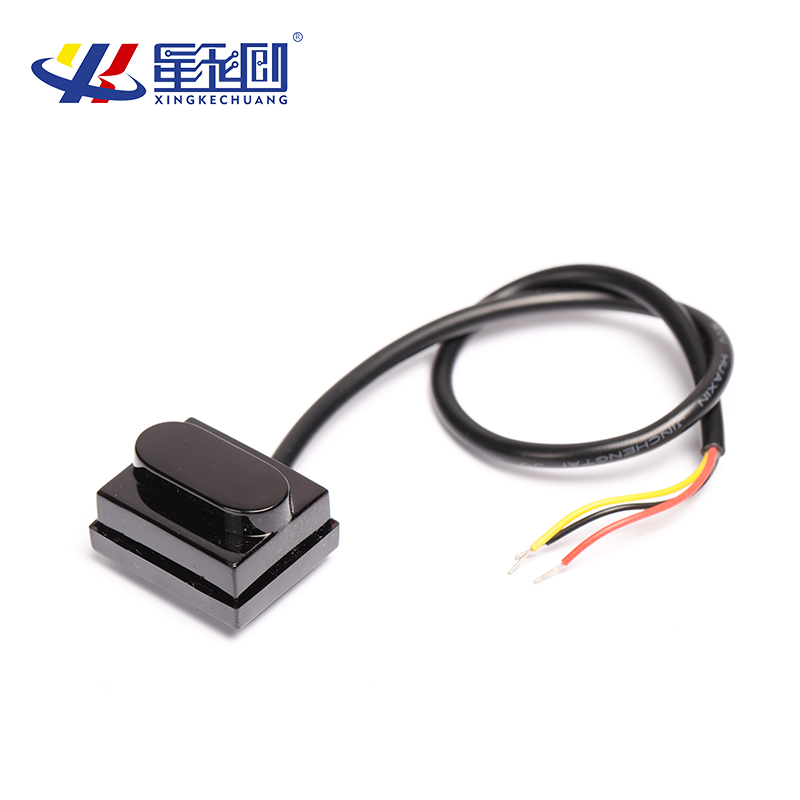

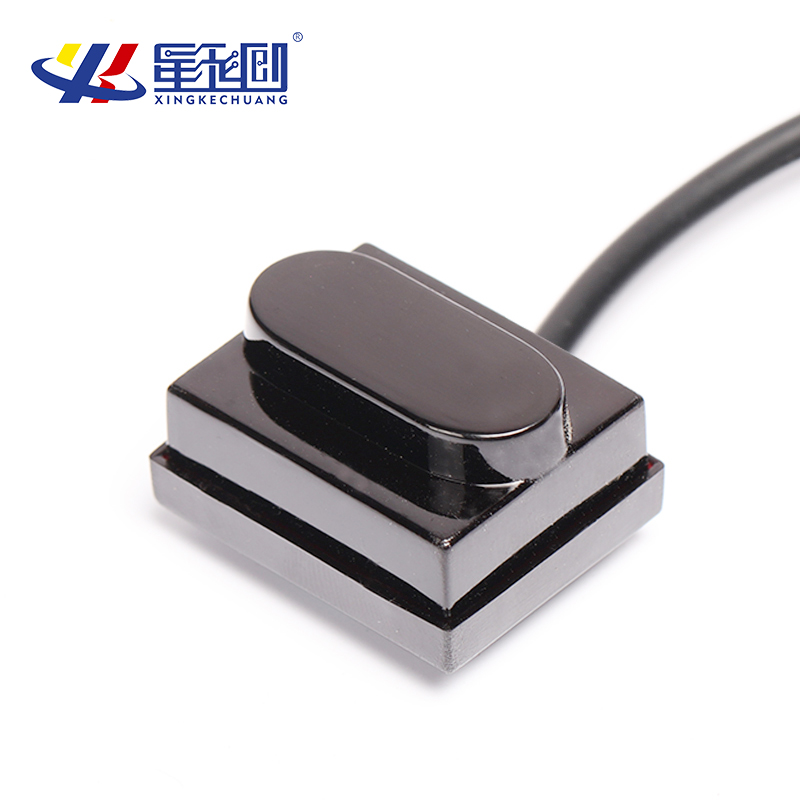

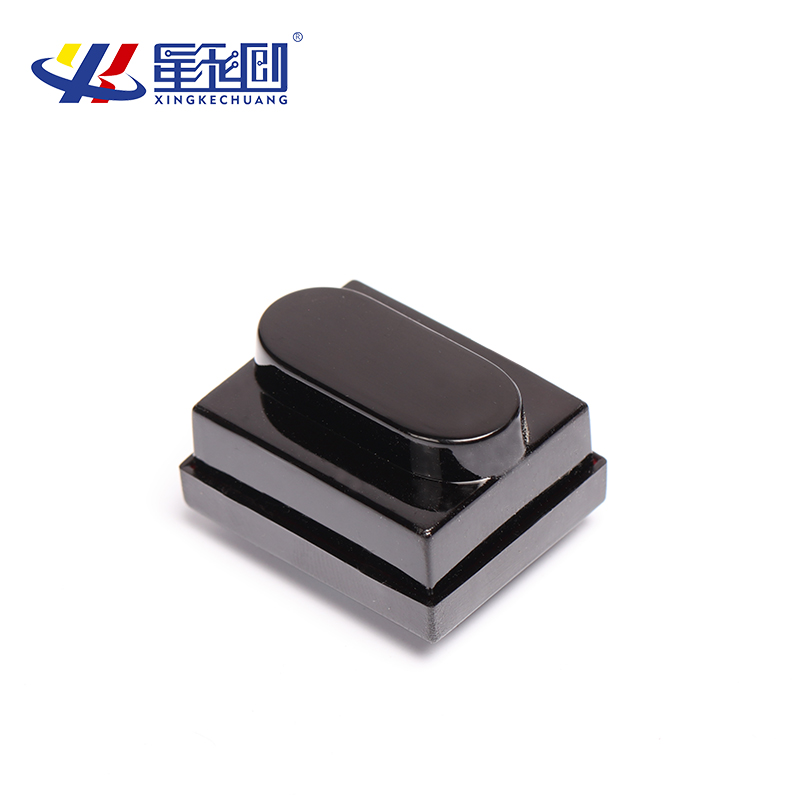

The XKC-001A is an advanced smart non-contact infrared motion sensor designed for reliable object and human detection. Utilizing the principle of infrared light diffuse reflection, this sensor automatically outputs a signal when a person or object enters its predefined sensing area and deactivates the output when the target leaves. With its compact design, precise sensing capabilities, and multiple output options, the XKC-001A delivers exceptional performance across a wide range of automation and detection applications. Manufactured to meet CE and ROHS-1.0 standards, this sensor combines durability, ease of installation, and intelligent functionality to meet the demanding requirements of commercial and industrial clients.
Key Features
Precision Sensing Technology
The XKC-001A features a narrow 10-15° cone sensing angle, providing near-linear detection that minimizes false triggers from surrounding objects. Its sensing distance is fully adjustable from 0 cm to 100 cm using a simple button calibration system, with settings automatically saved even during power outages. The sensor's active sensing method ensures consistent performance regardless of ambient conditions, while its intelligent algorithm delivers strong anti-interference capabilities, allowing reliable operation even under direct sunlight up to 10,000 Lx or incandescent lighting up to 3,000 Lx.
Flexible Output Options
This infrared sensor offers versatile output configurations to suit diverse integration needs. It supports both high and low level outputs as well as NPN switching value outputs, with six distinct models available to match specific system requirements. Whether you need positive or reverse level outputs, or normally open (NO) or normally closed (NC) NPN outputs, the XKC-001A provides a seamless solution for easy integration into existing control systems.
Constructed from PC-V0 fireproof material and rated IP55 for water and dust resistance, the XKC-001A is built to withstand harsh operating environments. It operates reliably within a wide temperature range of -20°C to 85°C, making it suitable for both indoor and outdoor applications. The sensor features a low quiescent current of less than 3.5 mA, ensuring energy efficiency, while its red LED indicator provides clear visual feedback when detection occurs.
Applications
Sanitary Ware Automation
The XKC-001A is ideal for intelligent sanitary ware applications including faucet sensing, automatic urinal flushing, and hand dryers. Its non-contact operation ensures hygiene and convenience, while its precise detection capabilities prevent unnecessary water waste.
Home & Commercial Security
For security systems, this sensor provides reliable motion detection for anti-theft devices, automatic doorbells, and stair aisle lighting. Its narrow sensing angle allows for targeted monitoring, reducing false alarms from pets or moving objects outside the intended area.
Industrial & Robotics Solutions
In industrial settings, the XKC-001A excels at robot obstacle recognition, automatic door control, and advertising light box activation. Its robust construction and wide operating temperature range make it suitable for factory floors and other challenging environments. Additional applications include TV proximity reminders and automatic trash cans.
FAQ
How do I adjust the sensing distance of the XKC-001A?
The sensing distance is easily adjusted using the built-in button for automatic calibration. Simply press the button while the target is at the desired detection distance, and the sensor will automatically calibrate and save the setting. This calibration is retained even when power is disconnected.
What output types are available for the XKC-001A?
The XKC-001A offers two main output categories: high and low level outputs, and NPN switching value outputs. Within these categories, there are six specific models: positive 5V, reverse 5V, positive VCC, reverse VCC, normally open NPN, and normally closed NPN.
Can the cable length be customized?

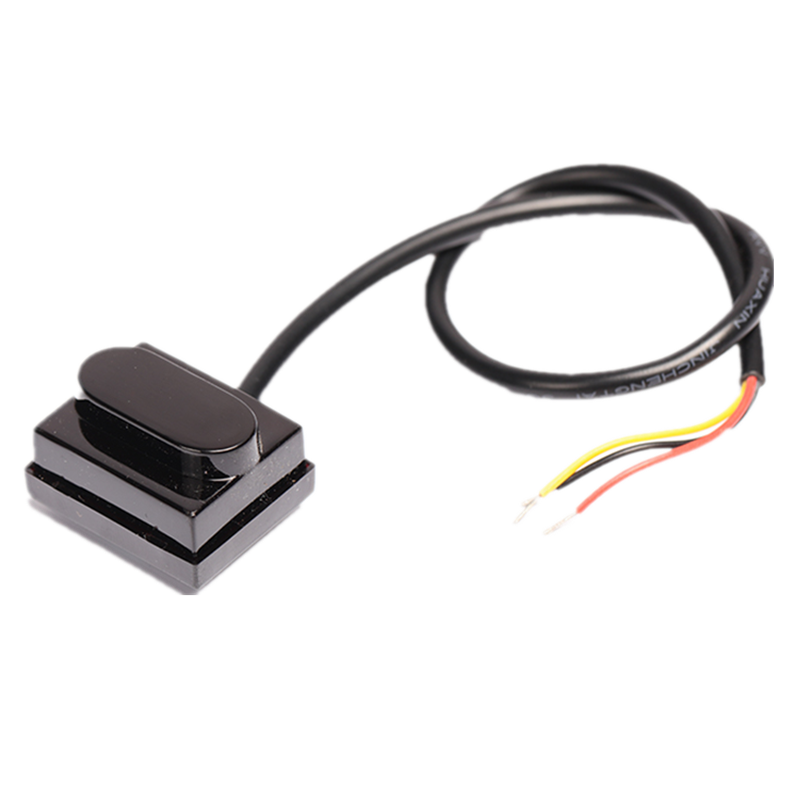

Yes, the standard cable length is 20 cm (±10 mm), but custom cable lengths are available for volume orders to meet specific installation requirements.
What is the maximum load current the XKC-001A can handle?
The XKC-001A can support a maximum load current of less than 100 mA. For applications requiring higher current loads, an external relay or amplifier should be used.
