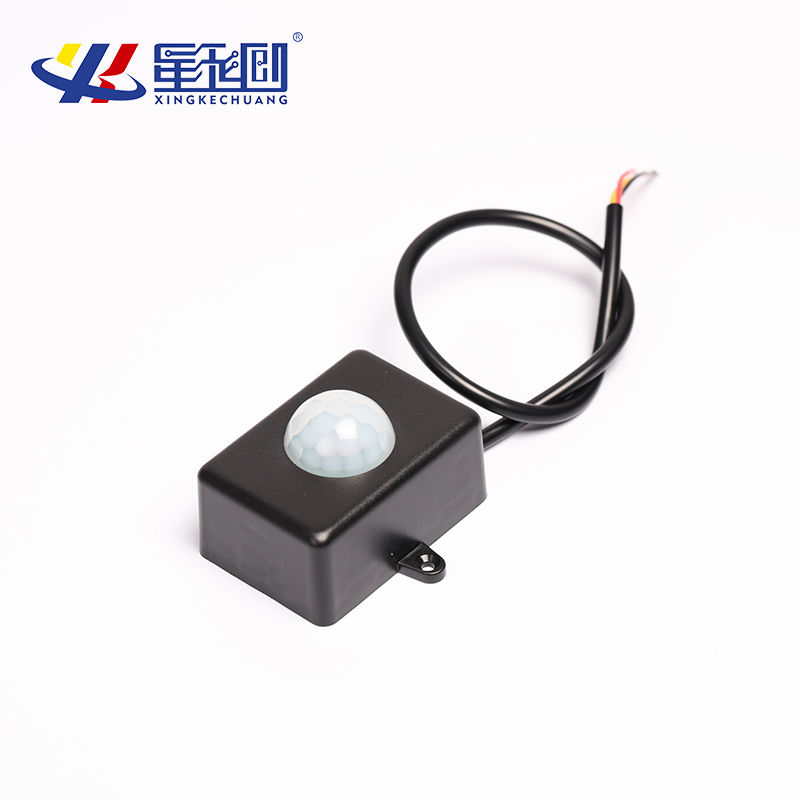

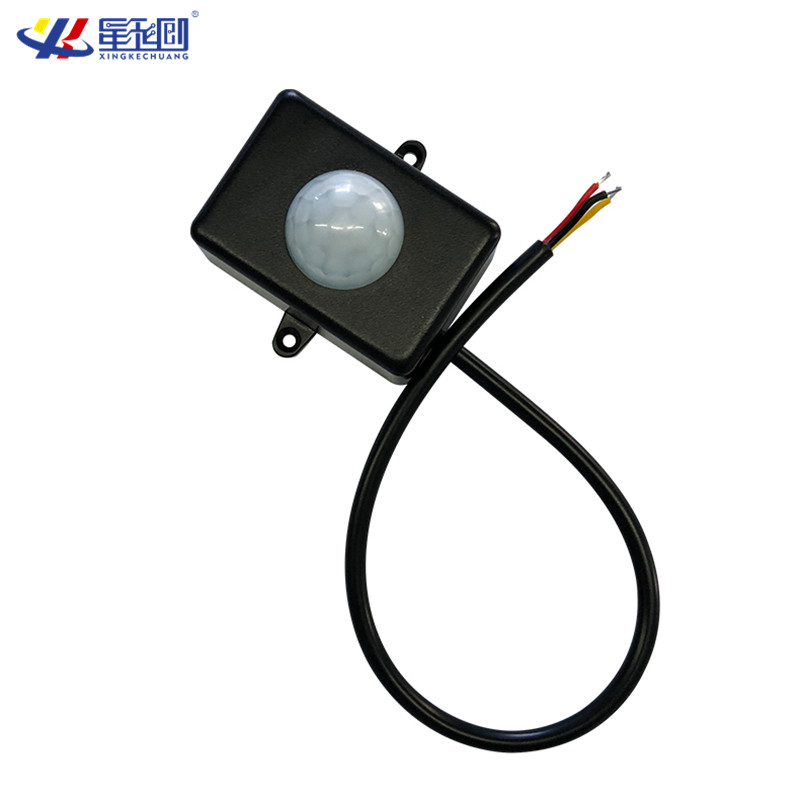

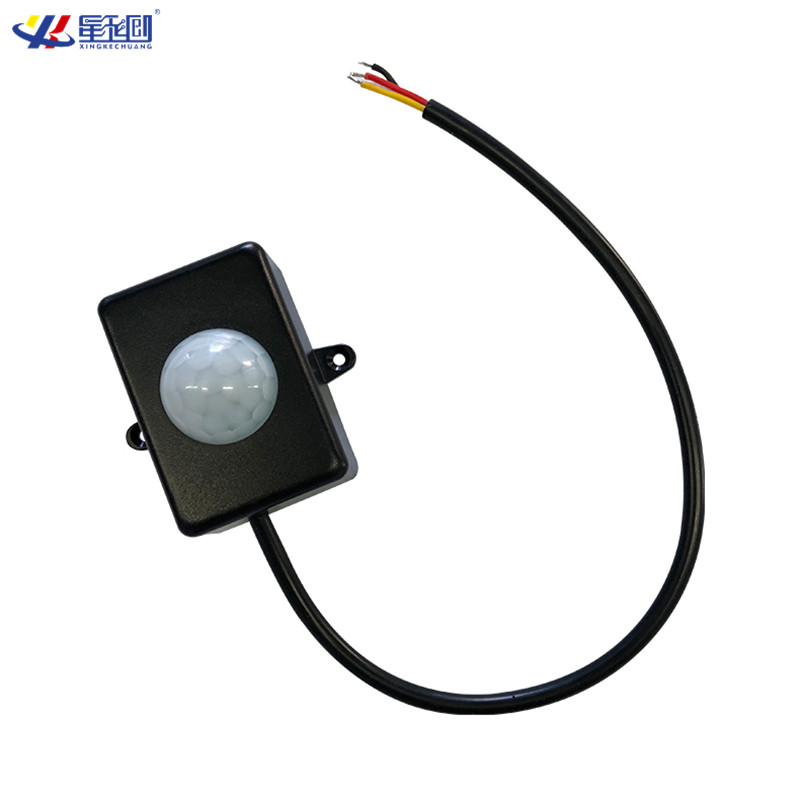

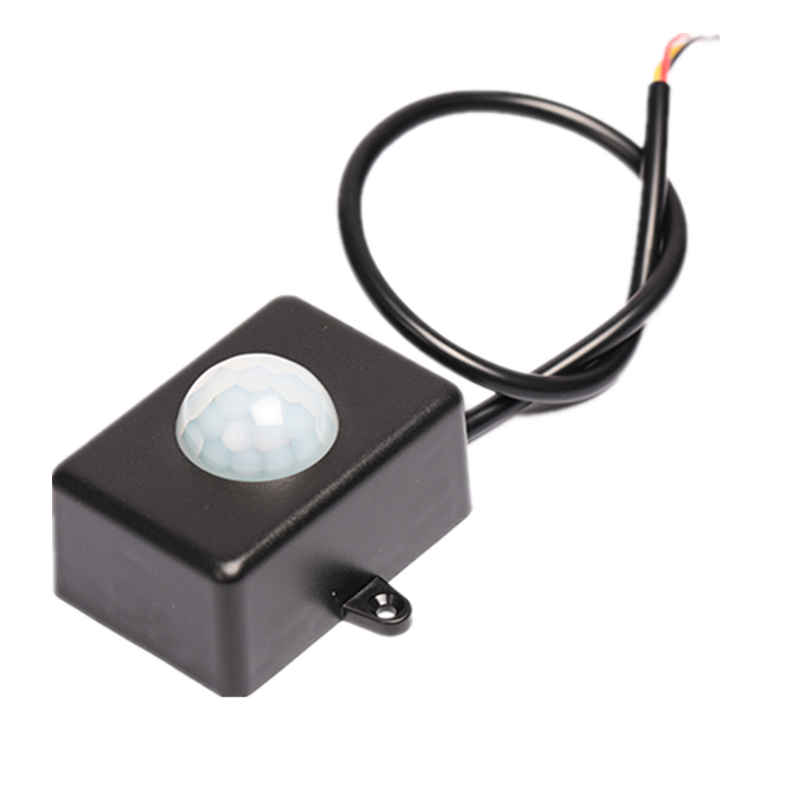

The XKC-003K4 is a professional-grade automatic control product based on advanced passive infrared technology. Designed and manufactured by XINGKECHUANG, this motion sensor delivers exceptional sensitivity, outstanding reliability, and ultra-low power consumption. With a wide operating voltage range and multiple output options, it seamlessly integrates into various automatic induction electrical systems. The module features adjustable sensing distance (up to 7 meters) and delay time (5-300 seconds), making it highly versatile for diverse commercial and industrial applications.
Key Features & Benefits
Fully Automatic Induction: Outputs a high level when a person enters the sensing range and automatically switches to low level after a configurable delay when the person leaves
High Sensitivity & Reliability: Detects human movement with precision across a wide temperature range (-20°C to 85°C)
Ultra-Low Power Consumption: Quiescent current less than 200 microamps, ideal for battery-powered applications
Wide Operating Voltage: Default DC 5V-12V, compatible with most standard electrical systems
Advanced Functional Capabilities
Optional Photosensitive Control: Can be configured to disable sensing during daylight or bright light conditions (not factory-set)
Dual Trigger Modes: Jumper-selectable between non-repeatable and repeatable trigger modes
Non-repeatable trigger: Output returns to low level after delay time expires
Repeatable trigger (default): Output remains high as long as movement is detected, with delay resetting after each activity
Induction Blocking Time: Default 1-second blocking period after each sensing cycle, effectively suppressing interference from load switching and enabling interval detection applications
Multiple Output Options: High/low level, NPN, and relay outputs for easy integration with various circuits
Customization & Flexibility
Adjustable sensing delay time (5-300 seconds)
Adjustable sensing distance (up to 7 meters)

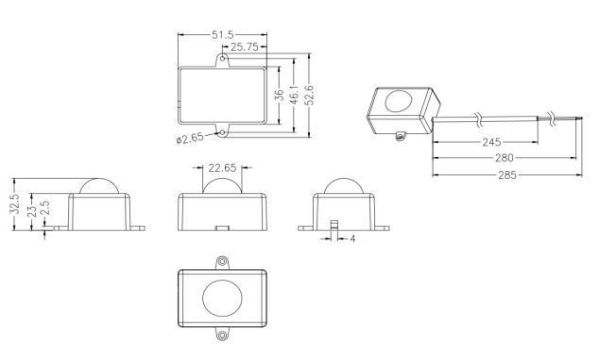

Compact design with easy installation
110-degree cone angle detection coverage
Applications
The XKC-003K4 PIR motion sensor is widely used across numerous commercial and industrial sectors:
Human body induction lighting systems
Interactive sensor-based toys
Security and access control products
Industrial automation control systems
Automatic induction electrical equipment
Battery-powered automatic control devices
Energy-saving systems
Smart building automation
Frequently Asked Questions
What is the difference between repeatable and non-repeatable trigger modes?
In repeatable trigger mode (factory default), the sensor maintains a high output as long as there is human movement within the detection range, resetting the delay timer after each detected activity. In non-repeatable trigger mode, the output automatically returns to low level once the initial delay period ends, regardless of ongoing movement.
Can the photosensitive control be enabled?
Yes, photosensitive control is an optional feature that can be configured according to your requirements. It is not enabled by default at the factory. When activated, the sensor will not trigger during daylight or bright light conditions.
What is the purpose of the induction blocking time?
The 1-second default blocking time prevents the sensor from immediately re-triggering after each output cycle. This feature effectively suppresses electrical interference generated during load switching and enables interval detection applications where periodic sensing is required.
Is this sensor suitable for outdoor use?
The XKC-003K4 operates reliably within a temperature range of -20°C to 85°C. For outdoor applications, we recommend using an appropriate weatherproof enclosure to protect the module from moisture and direct exposure to the elements.
How do I adjust the sensing distance and delay time?
Both parameters are adjustable using the onboard potentiometers. The sensing distance can be calibrated from approximately 1 meter up to 7 meters, while the delay time can be set between 5 seconds and 300 seconds.
