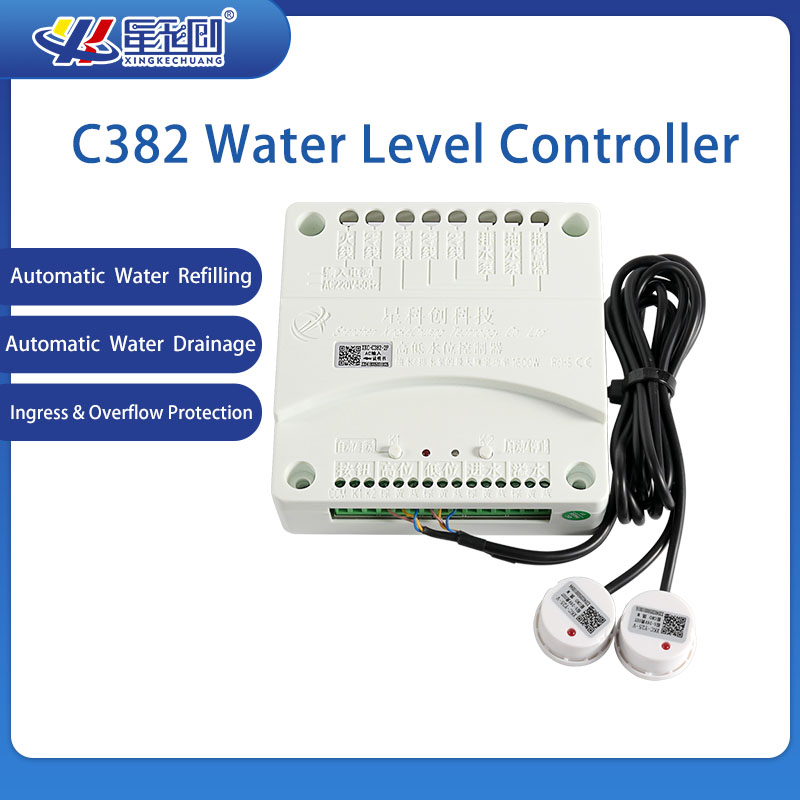

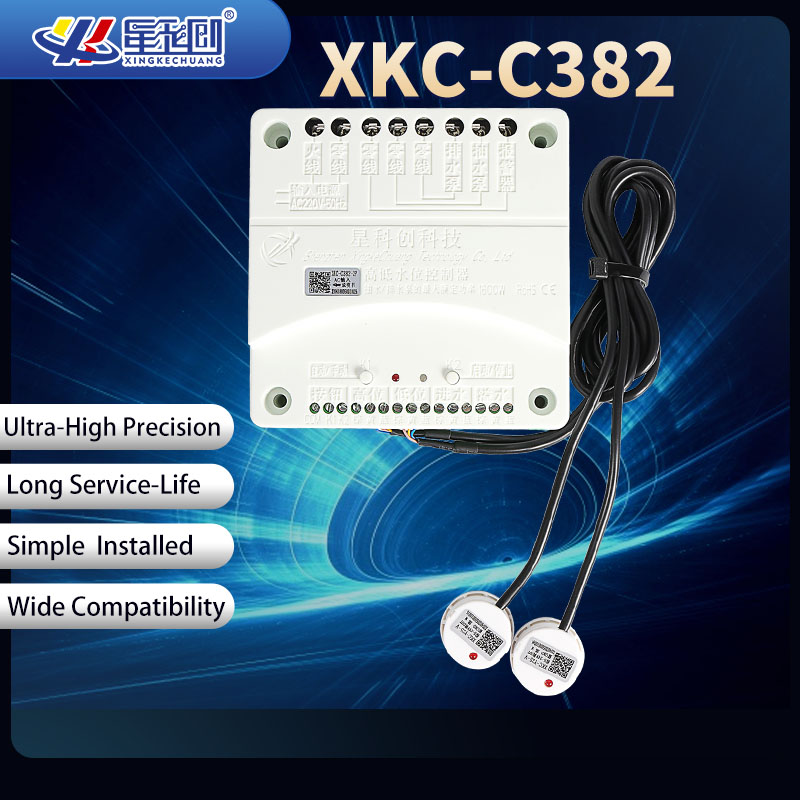

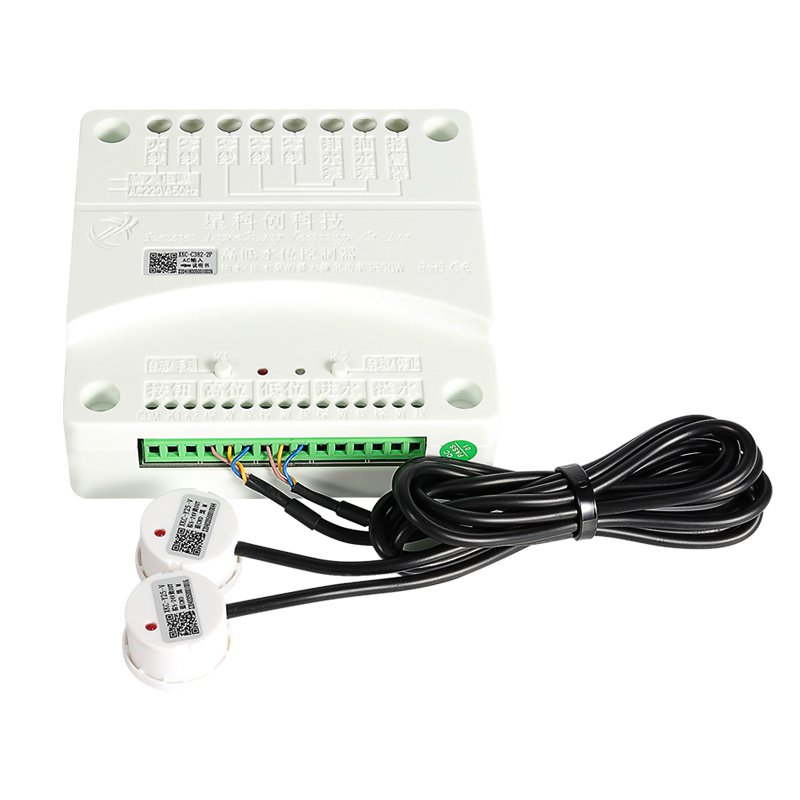

The XKC-C382 intelligent non-contact automatic liquid level controller is a high-precision solution designed for commercial and industrial clients seeking reliable, maintenance-free liquid level management. Manufactured by XINGKECHUANG, a trusted name in sensor technology, this controller works seamlessly with two non-contact liquid level detection heads to maintain stable liquid levels in various containers.
When the liquid level drops below the preset threshold, the low-level sensor sends an alarm signal that activates the water pump for automatic replenishment. Once the liquid reaches the desired height, the high-level sensor triggers the controller to disconnect the relay and stop the pump automatically. This continuous cycle ensures consistent liquid levels without manual intervention, reducing operational costs and preventing costly equipment damage.
Key Features & Benefits

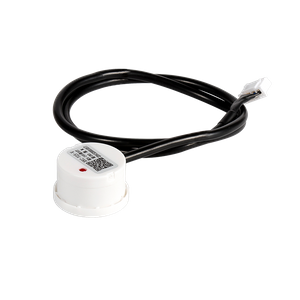

Equipped with high-performance Y25 probes, the XKC-C382 can penetrate non-metallic containers with a maximum wall thickness of 20mm. This non-contact design eliminates the risk of liquid contamination, making it ideal for medical equipment and food-grade applications. It also prevents sensor corrosion and wear, significantly extending the service life of the system.
Comprehensive Protection Functions
The controller features four essential protection mechanisms: automatic water replenishment, automatic drainage, water shortage protection, and overflow protection. These functions work together to prevent equipment damage caused by dry running, overflow, or inconsistent liquid levels, ensuring uninterrupted operation for your critical systems.
Flexible Power & Control Options
The XKC-C382 offers versatile power supply options, supporting both AC 110V-220V and DC 12V-24V inputs. It also provides diversified control modes, allowing you to operate the water pump in either manual or automatic mode based on your specific requirements. This flexibility makes it suitable for a wide range of commercial and industrial applications.
Easy Installation & Wide Compatibility

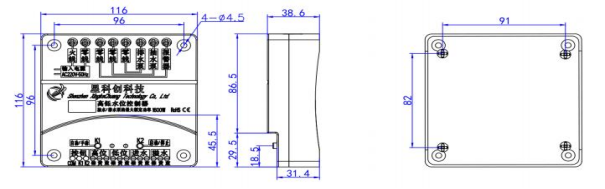

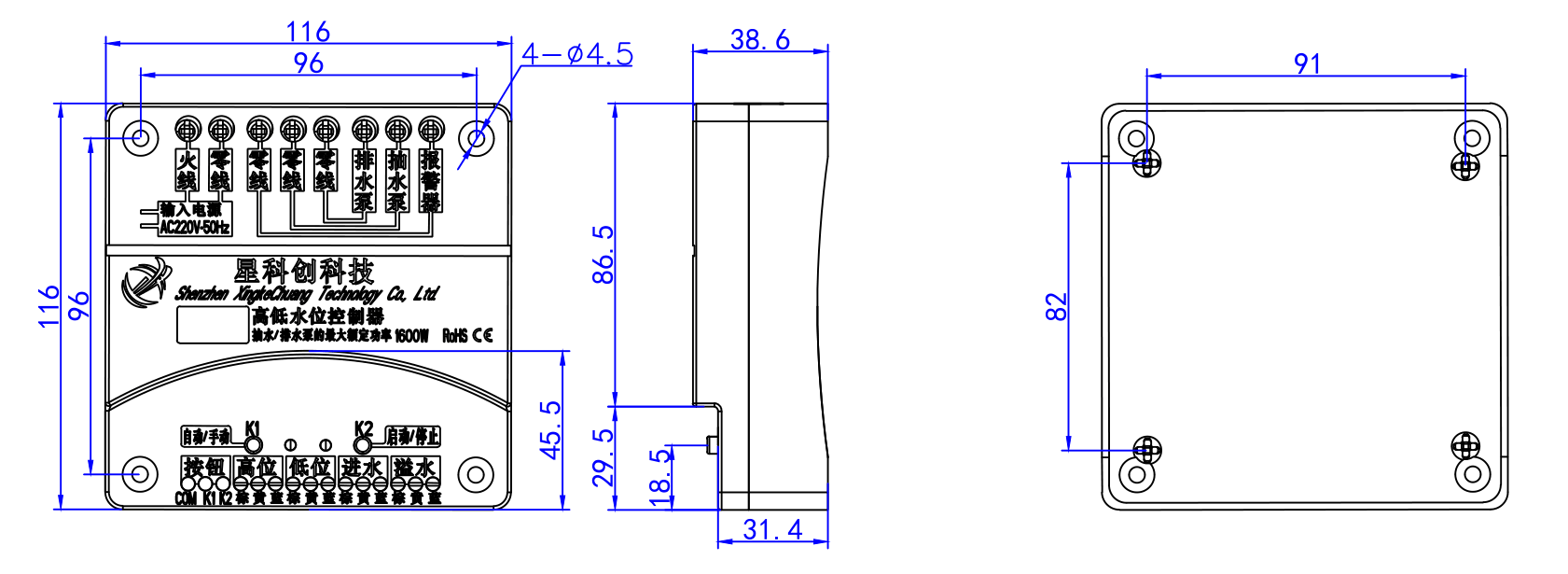

With screw-mounted wall-mounted installation, the controller can be set up quickly and easily without specialized tools. It is compatible with both flat containers and large pipe containers, making it a versatile solution for various liquid storage systems.
Industry Applications
The XKC-C382 non-contact liquid level controller is widely used across multiple industries:
Aquaculture and fish tank systems
Commercial and residential water tanks
Wastewater treatment equipment
Medical and healthcare devices
Food and beverage processing
Industrial manufacturing processes
FAQ
How does the automatic water replenishment system work?
By fixing the high and low level sensors to the outer wall of the water tank, the controller can accurately detect liquid levels without direct contact. When the level drops below the low sensor, the pump is activated to replenish water. When the level reaches the high sensor, the pump is automatically stopped.
What types of containers is this controller compatible with?
The XKC-C382 is compatible with most non-metallic containers, including flat containers and large pipe containers. It can penetrate container walls up to 20mm thick, making it suitable for a wide range of liquid storage solutions.
What is the maximum load capacity of the relay output?
The relay output can handle up to 800W at 110V and up to 1600W at 220V for resistive loads. For applications requiring higher power, an intermediate relay must be added to ensure safe and reliable operation.
Why Choose XINGKECHUANG Liquid Level Controllers?
XINGKECHUANG has been a leading manufacturer of high-quality sensors and controllers for over a decade. Our products are designed and manufactured to meet international standards, with CE and ROHS-2.0 certifications ensuring safety and environmental compliance. We provide comprehensive technical support and detailed user manuals to help you get the most out of your investment.
The XKC-C382 non-contact automatic liquid level controller offers unmatched reliability, precision, and ease of use for commercial and industrial applications. With its advanced features and robust construction, it is the ideal solution for all your liquid level management needs.
