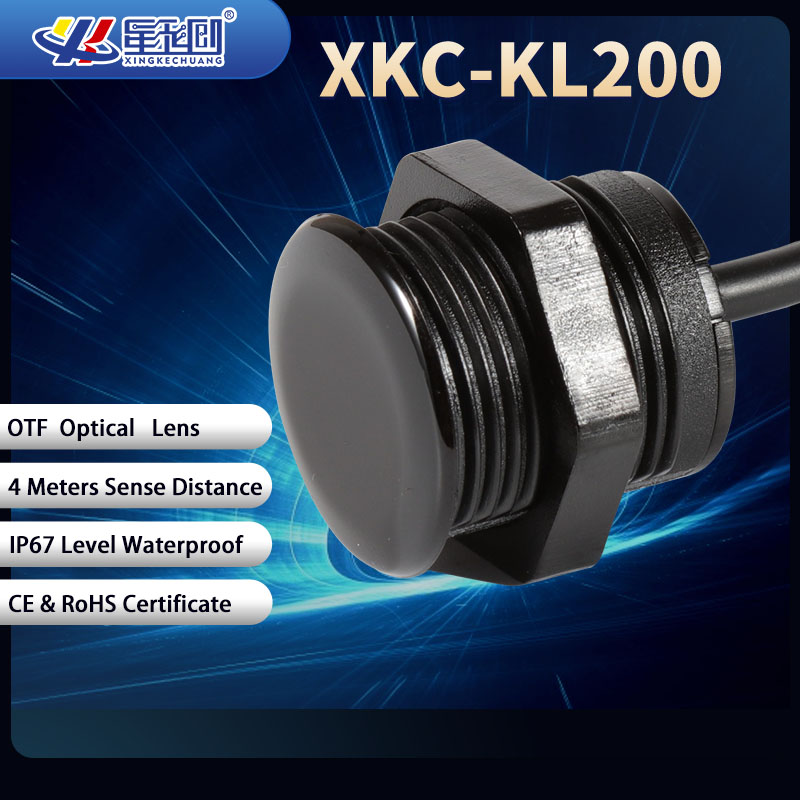

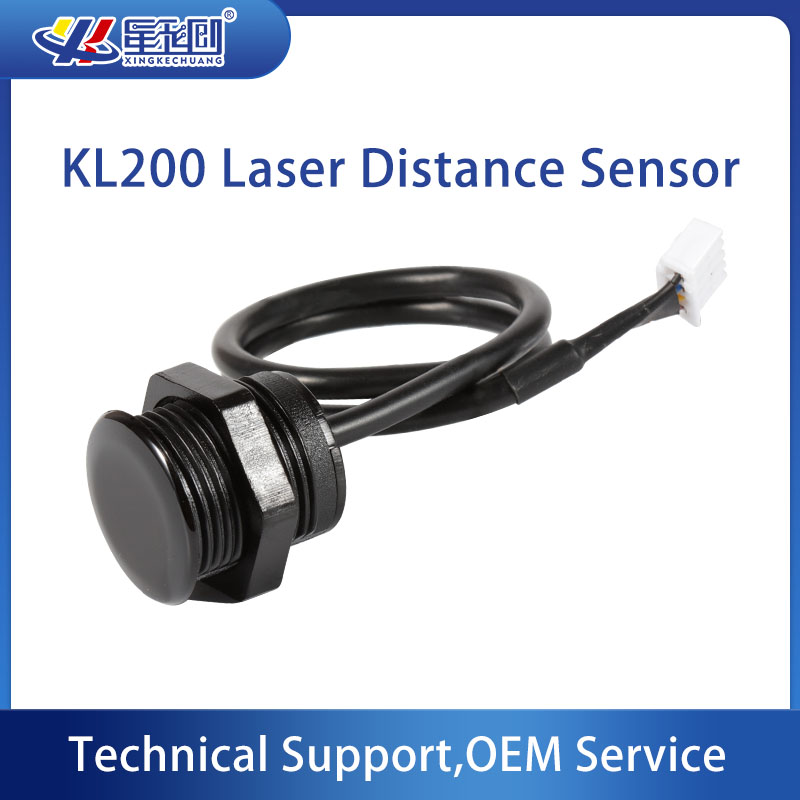

XINGKECHUANG presents the XKC-KL200, an advanced intelligent non-contact switch and laser distance sensor designed for precision measurement applications. Utilizing the principle of laser diffuse reflection on objects, this sensor detects when a person or object enters the pre-set sensing area and outputs a signal along with accurate distance values. When the target leaves the sensing zone, the output automatically deactivates.
Manufactured with cutting-edge OTF optical lens technology, the XKC-KL200 delivers reliable performance across diverse environments. It comes with CE and RoHS certifications, ensuring compliance with international quality and safety standards. Our dedicated technical support team and comprehensive OEM services make this sensor an ideal choice for manufacturers and system integrators seeking high-quality, customizable sensing solutions.
Key Features & Benefits
The XKC-KL200 offers exceptional sensing performance with a measurement range of 10-2000mm in indoor environments and up to 1000mm under direct sunlight. It achieves an accuracy of ±4% within the 200mm-2000mm range, providing reliable millimeter-level distance readings. The sensor features a multi-layer filter cover design that enhances stability and reduces false triggers caused by ambient light interference.
Its small sensing angle ensures precise detection of specific targets without being affected by surrounding objects. Unlike traditional sensors, the XKC-KL200 is not influenced by the surface color of detected objects, making it suitable for applications involving diverse materials and finishes. The non-contact operation ensures safety and hygiene, particularly in public and medical environments.
Robust Industrial-Grade Design
Built to withstand harsh operating conditions, the XKC-KL200 features an IP67 waterproof rating, making it resistant to dust and water ingress. The sensor's shell is constructed from PC-V0 fireproof material, providing excellent durability and safety. It operates reliably within a wide temperature range of -20 to 65℃ and can be stored at temperatures from -20 to 85℃.
The sensor incorporates built-in short-circuit protection that automatically stops output when the current exceeds 1A, preventing damage to both the sensor and connected equipment. With a low working current of only 15mA, the XKC-KL200 is energy-efficient and suitable for battery-powered applications.
Flexible Integration Capabilities

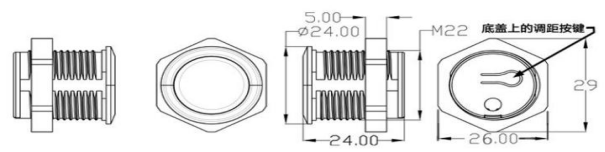

The XKC-KL200 offers multiple output modes including UART serial port, NPN switching value, and high/low level signals, providing flexibility for integration into various systems. Its compact 24×24mm main shell size allows for easy installation in space-constrained environments. The sensor features concealed threaded fixation and allows self-adjustment of sensing distance via built-in buttons, simplifying setup and calibration.
The standard cable length is 30cm (±10mm), and custom cable lengths are available for bulk orders to meet specific project requirements. With a maximum load current of 300mA, the XKC-KL200 can directly drive a wide range of actuators and devices without the need for additional relays.
Applications
Smart Sanitary Ware & Home Appliances
The XKC-KL200 is widely used in intelligent sanitary ware products such as sensor faucets, automatic urinal flushing systems, and automatic hand dryers. Its non-contact operation ensures hygiene in public restrooms and healthcare facilities. In home appliances, it is used in automatic trash cans, smart lighting systems, and TV proximity reminders to prevent eye strain from close viewing.
Industrial Automation & Robotics
In industrial automation, the XKC-KL200 enables intelligent detection and control in production lines. It is used for object presence detection, counting, and positioning applications. For robotics, the sensor provides reliable obstacle recognition capabilities, allowing robots to navigate safely and avoid collisions in dynamic environments.
Security & Access Control Systems
The XKC-KL200 enhances security systems with its accurate motion detection capabilities. It is used in anti-theft devices, automatic doorbells, and stair aisle sensors. In access control systems, it enables automatic door operation and advertising light box activation when people approach, improving energy efficiency and user experience.
FAQ
What is the maximum sensing distance of the XKC-KL200?
The XKC-KL200 can measure distances up to 2000mm in indoor environments. Under direct sunlight conditions, the maximum sensing distance is 1000mm. The minimum sensing distance is 10mm.
What output modes are available for the XKC-KL200?
The XKC-KL200 supports three output modes: UART serial port signal, NPN switching value, and high/low level output. This flexibility allows it to be easily integrated into a wide range of electronic systems.
Is the XKC-KL200 suitable for outdoor use?
While the XKC-KL200 features an IP67 waterproof rating and can operate in temperatures from -20 to 65℃, its maximum sensing distance is reduced to 1000mm under direct sunlight. For optimal performance in outdoor applications, we recommend installing the sensor in a shaded location.
What is the power supply requirement for the XKC-KL200?
The XKC-KL200 operates on a DC voltage range of 5-24V, making it compatible with most standard power supplies used in industrial and consumer electronics applications. It has a low working current of only 15mA, making it energy-efficient.
