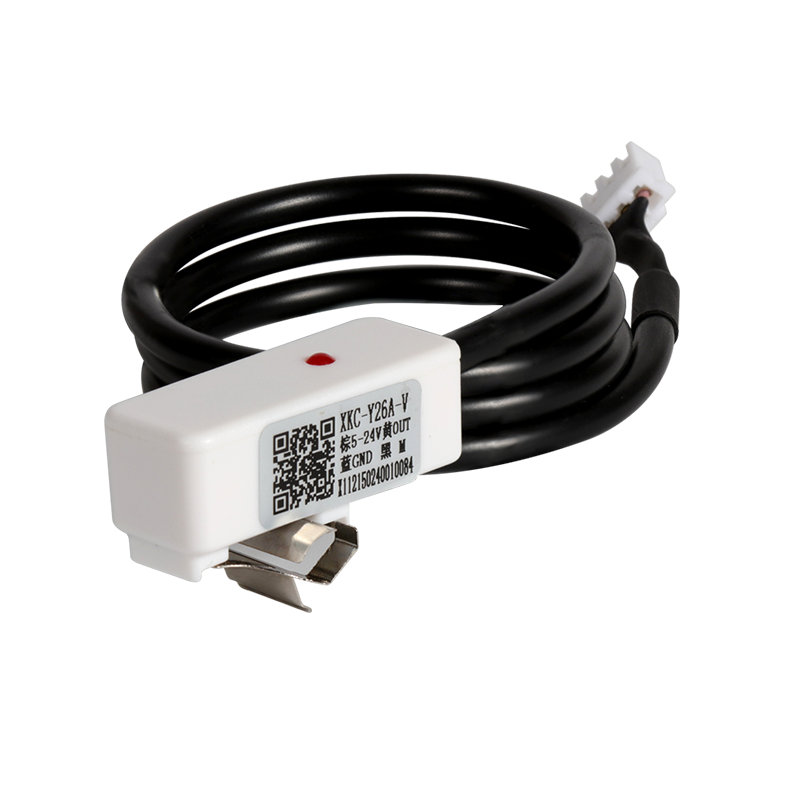

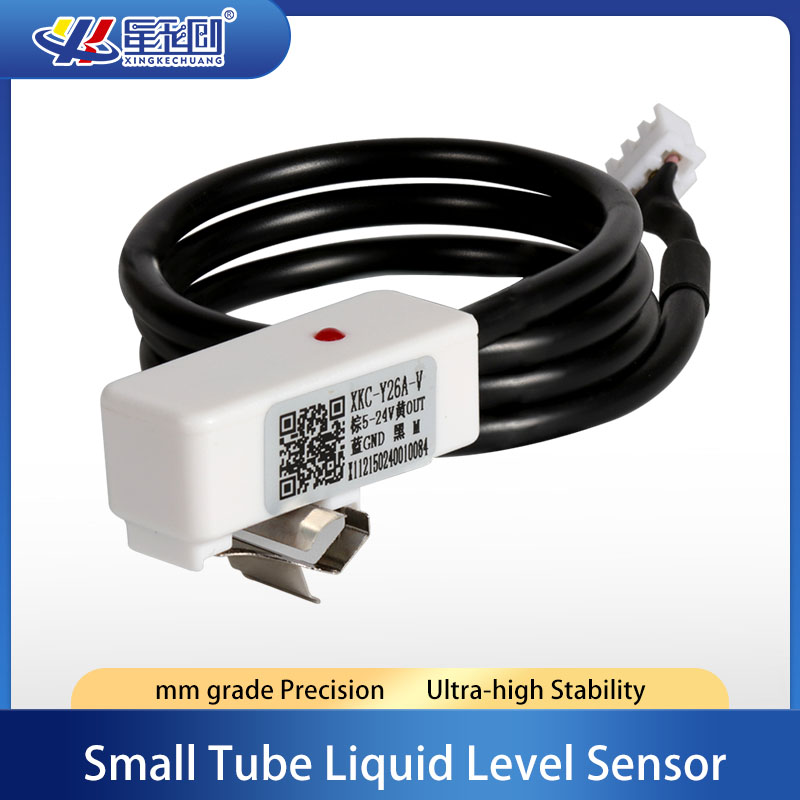

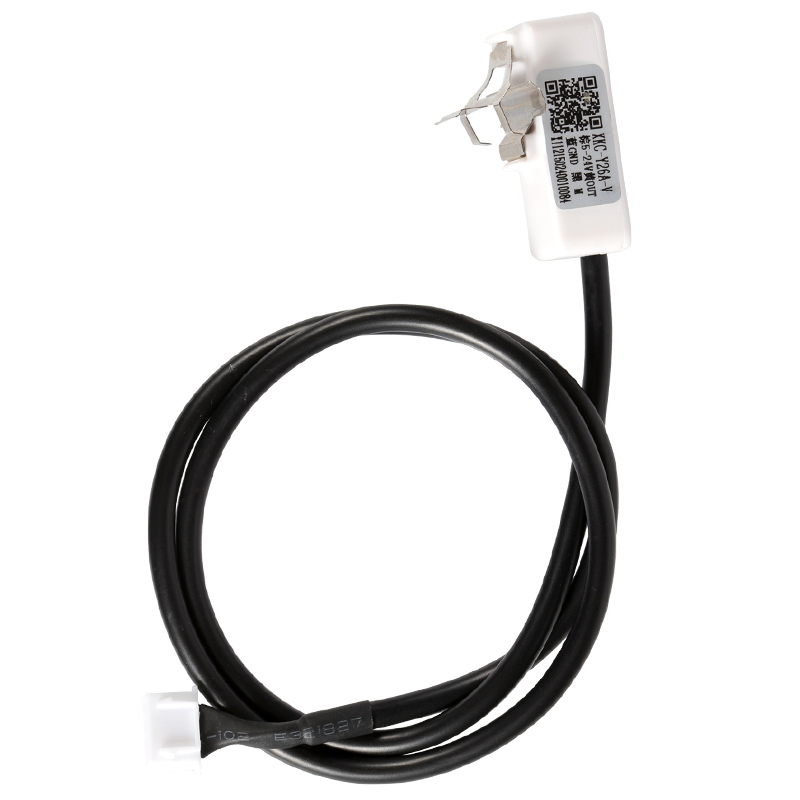

The XKC-Y26A is an advanced non-contact liquid level sensor specifically designed for small diameter non-metallic pipes with an outer diameter of 4-10mm. This innovative sensor utilizes cutting-edge technology to detect the presence of liquid inside pipes or containers from the outside, eliminating the need for direct contact with the liquid. This unique design makes it ideal for applications where hygiene, corrosion resistance, and ease of installation are critical requirements.
Manufactured with high-quality PC V0 fireproof material and featuring an IP67 waterproof rating, the XKC-Y26A delivers exceptional performance even in harsh industrial environments. With a wide operating temperature range of -20 to 105℃ and humidity tolerance from 5% to 100%, this sensor provides reliable operation across diverse application scenarios. The sensor is available in three output signal variants: high/low level, NPN, and PNP, ensuring compatibility with most industrial control systems.
Key Features and Benefits
The XKC-Y26A's non-contact design offers significant advantages over traditional contact-based sensors. Since it does not come into direct contact with the liquid, it is completely immune to corrosion from strong acids, alkalis, and other aggressive chemicals. This eliminates the risk of sensor degradation and extends the product's service life dramatically. Additionally, the non-contact design means the sensor is not affected by scale, sediment, or other debris that can accumulate inside pipes over time, ensuring consistent and accurate readings throughout its operational life.
Easy Clip-On Installation
Featuring a convenient clip-on design, the XKC-Y26A can be quickly and easily installed on existing pipes without the need for any modifications, drilling, or welding. This not only reduces installation time and labor costs but also allows for easy removal and repositioning as needed. The sensor can be installed in minutes, minimizing downtime for your operations and making it an ideal solution for retrofitting existing systems.
Multiple Output Signal Options
To accommodate different control system requirements, the XKC-Y26A is available in three output configurations:
XKC-Y26A-V: High and low level output (DC 5-24V)
XKC-Y26A-PNP: Switching value PNP output (DC 5-12V or DC 24V)
XKC-Y26A-NPN: Switching value NPN output (DC 5-12V or DC 24V)
All models feature a fast response time of 500ms and a sensing accuracy of ±1.5mm, ensuring precise and timely liquid level detection. The output current of ≤100mA provides sufficient drive capability for most industrial applications.
Robust and Durable Design
Constructed from PC V0 fireproof material, the XKC-Y26A offers excellent mechanical strength and flame resistance. The IP67 waterproof rating ensures the sensor can withstand exposure to water, dust, and other environmental contaminants, making it suitable for use in wet and dusty industrial environments. The sensor has been rigorously tested to meet international standards and holds CE and ROHS-2.0 certifications, guaranteeing its quality and safety.
Applications
The XKC-Y26A thin tube liquid level sensor is widely used in various industrial and commercial applications, including:
Water quality testing equipment
Beer machines and beverage dispensing systems
Atomizing equipment and humidifiers
Coffee machines and espresso makers
Medical equipment and laboratory instruments
Chemical processing systems
Food and beverage production lines
HVAC and refrigeration systems
FAQ
What types of pipes is the XKC-Y26A compatible with?
The XKC-Y26A is designed for use with non-metallic pipes with an outer diameter ranging from 5mm to 10mm. It is not suitable for use with metal pipes as they will interfere with the sensor's detection capabilities.
Can the XKC-Y26A detect corrosive liquids?
Yes, the XKC-Y26A's non-contact design makes it completely immune to corrosion from strong acids, alkalis, and other aggressive chemicals. This makes it an excellent choice for applications involving corrosive liquids.
What is the response time of the XKC-Y26A sensor?
The XKC-Y26A has a fast response time of 500ms, ensuring that it can quickly detect changes in liquid level and provide timely signals to your control system.
How do I choose between NPN, PNP and voltage output models?
The choice between output types depends on your specific control system requirements. NPN and PNP outputs are typically used with PLCs and other industrial controllers, while the voltage output model is more suitable for simple on/off control applications. If you are unsure which output type is right for your application, our technical support team can help you make the best choice.
