If a washing machine overfills, underfills, stops before agitation, or refuses to spin, the water level sensing system may be involved. In most top-load washers, the water level sensor or pressure switch is located inside the upper control console. In many front-load washers, the pressure sensor is mounted beneath the top panel, often near the rear or side of the cabinet.
The fastest way to identify it is to look for a small round or rectangular component connected to a thin pressure hose and an electrical wiring harness. The hose runs from the sensor to an air chamber on the outer tub. As the water level rises, air pressure in the hose changes, allowing the sensor to report the fill level to the washer’s control system.
Location varies by model, and a fill problem does not automatically mean that the sensor itself has failed. A blocked, kinked, loose, or cracked pressure hose can produce many of the same symptoms. This guide explains where to look, how the system works, what to inspect, and when replacement is appropriate.
Top-load washers: The water level switch is usually behind the upper control panel. On older models, it may be connected to the load-size selector.
Front-load washers: The electronic pressure sensor is commonly located beneath the top cover, although some models position it lower in the cabinet.
What to look for: A compact module with an electrical connector and a small rubber or plastic pressure hose.
Do not assume the sensor is faulty: Hose damage, detergent buildup, a blocked air chamber, wiring problems, or a failed inlet valve can cause similar symptoms.
Replacement must be model-specific: A consumer repair normally requires the exact pressure switch or pressure sensor approved for that washing machine.
OEM designs are different: Appliance manufacturers may also use non-contact liquid level sensors for fixed plastic reservoirs, detergent containers, or auxiliary tanks, but these are not universal drop-in replacements for a washer’s original pressure switch.
The exact position depends on the washing machine design. Before removing any panel, disconnect the appliance from the power supply, close the hot and cold water valves, and consult the service information for the specific model.
On many traditional top-load washers, the water level switch is located inside the control console at the back of the machine. Depending on the design, screws may be visible on the rear of the console or concealed beneath trim pieces.
After the console is opened, look for:
A round plastic switch or small sensor module
A thin pressure hose attached to a nipple on the component
A wiring connector or several terminal wires
A mounting bracket near the water-level or load-size control
On older mechanical models, the water level switch may sit directly behind the load-size selector knob. Turning the selector changes the pressure threshold at which the switch responds. Newer top-load models may use an electronic pressure sensor that sends a changing signal to the main control board instead of operating as a simple on/off switch.
If the sensor is not immediately visible, trace the small hose upward from the outer tub or air chamber. Do not confuse this hose with the larger drain hose or water inlet hoses.
Front-load washers usually use an electronic pressure sensor. It is often installed beneath the top cover near the rear or side of the cabinet. The component is typically clipped or screwed to the frame and connected to both a small pressure hose and a wiring harness.
Some models place the sensor lower in the cabinet near the outer tub or drain system. Because front-load machines vary considerably, do not remove the door seal, pump assembly, or lower panels unless the service manual identifies that access route.
Electronic pressure sensors may report water level through voltage, frequency, or digital signal changes. For that reason, they cannot always be checked with the same continuity test used for an older mechanical pressure switch.
Compact, countertop, and portable washers have less internal space, so the sensor may be mounted beside the control board, near the side wall, or close to the lower tub. Access may require removing a side or rear panel rather than the top console.
Because the wiring and hose routing can be tightly packed, photograph each connection before disconnecting anything. Avoid pulling on wires or sharply bending the pressure hose.
Most washing machines do not place the pressure sensor directly in the wash water. Instead, the system uses an air chamber and a narrow hose.
Water enters the outer tub.
The rising water level compresses air in the air chamber and pressure hose.
The pressure change reaches the water level switch or electronic sensor.
The sensor reports that change to the control system.
At the programmed fill level, the control system closes the water inlet valve and allows the cycle to continue.
Older mechanical switches use a diaphragm and electrical contacts. When air pressure reaches a set threshold, the diaphragm moves and the contacts change state. Modern electronic sensors measure pressure more precisely and send a variable signal to the control board.
The water level sensor is therefore an input device, not the washer’s “brain.” The control board uses the sensor signal together with the selected program, load settings, door or lid status, and other inputs to manage the cycle.
Several symptoms can point to the pressure sensing system, but each symptom has more than one possible cause.
If water continues rising above the normal level, the sensor may not be receiving pressure from the tub. Possible causes include:
A pressure hose that has come loose
A cracked hose that leaks air
A blocked air chamber
A failed pressure switch or electronic sensor
Damaged wiring between the sensor and control board
A water inlet valve stuck mechanically open
If water continues to enter after the washer is unplugged, shut off the water supply immediately. That behavior points more strongly to a mechanically stuck inlet valve than to the water level sensor.
Premature filling shutoff can occur when detergent residue, moisture, or trapped pressure creates a false high-level signal. It can also be caused by a restricted water supply, a clogged inlet screen, incorrect cycle selection, or normal water-saving logic on a high-efficiency washer.
Do not judge fill performance only by comparing a modern high-efficiency model with an older washer. Many current machines intentionally use less visible water.
The control board may delay agitation, draining, or spinning if the water level signal is implausible. However, drain pump faults, lid or door lock problems, unbalanced loads, motor faults, and control board errors can produce similar symptoms. Check the displayed error code and the model-specific diagnostic procedure before replacing parts.
A hose problem is one of the most common reasons a functioning pressure sensor receives the wrong information.
With the machine unplugged and the water supply closed:
Locate the pressure hose at the sensor.
Check whether it is fully seated and securely clamped.
Inspect the hose for kinks, abrasion, hardened sections, pinholes, or splits.
Follow the hose toward the outer tub and inspect its full accessible length.
Check the air chamber connection for detergent residue or debris, following the manufacturer’s service procedure.
Do not use high-pressure compressed air. Excessive pressure can damage the hose, diaphragm, or electronic sensor. If the hose needs cleaning, follow the appliance manufacturer’s instructions rather than forcing debris deeper into the air chamber.
A damaged hose should be replaced with the correct diameter and material. An airtight connection is essential; a hose that looks similar but seals poorly can cause intermittent overfilling or underfilling.
Testing depends on whether the machine uses a mechanical switch or an electronic pressure sensor.
An older mechanical switch may be tested for contact changes with a multimeter, but only after the washer has been unplugged and the switch wiring has been documented and disconnected as directed by the service manual.
Use the manufacturer’s terminal diagram to identify the correct contacts. A low, controlled pressure source may be used to activate the diaphragm. The switch should change state at the specified threshold and return when pressure is released.
Do not guess which terminals to test, do not apply mains power during a resistance or continuity test, and do not use compressed air. If the switch does not respond consistently, replacement is usually safer than opening or modifying the sealed component.
An electronic pressure sensor should not be evaluated as a simple open-or-closed switch. Depending on the model, diagnosis may require:
The washer’s built-in diagnostic mode
A manufacturer-specific error code
A voltage, frequency, or data-signal measurement
A service tool or control-board test
Follow the service manual for the exact model. An incorrect test can produce a false diagnosis or damage the control board.
These terms are sometimes used interchangeably online, but they describe different functions.
| Device | What It Detects | Typical Position | Main Function |
|---|---|---|---|
| Water level sensor or pressure switch | The level of water in the tub, usually through air pressure | Connected to the outer tub by a small hose | Stops filling and informs cycle control |
| Water flow sensor | The movement or quantity of water through a pipe | Installed in the inlet or another flow path | Measures or confirms liquid flow |
| Water leakage sensor | Water where it should not be | Base tray, floor area, or equipment enclosure | Triggers an alarm or shutdown |
| Non-contact liquid level sensor | Liquid presence at a set point through a non-metallic container wall | Mounted outside a fixed plastic, glass, or ceramic container | Monitors a reservoir without touching the liquid |
Calling a pressure switch a “water flow sensor” can lead to the wrong replacement part. Always confirm what the component measures and how it connects to the system.
The correct action depends on the failure found during inspection.
| Condition | Recommended Action | Reason |
|---|---|---|
| Loose pressure hose | Refit and secure it as specified | Restores the airtight pressure path |
| Kinked or blocked hose | Correct the routing or clean it using the approved procedure | Prevents false pressure readings |
| Cracked or hardened hose | Replace it with the specified hose | Air leakage prevents accurate level detection |
| Corroded connector or damaged wiring | Repair the harness or connector properly | Poor electrical contact can imitate sensor failure |
| Mechanical switch fails the specified test | Replace the switch | Sealed diaphragms and contacts are generally not repairable |
| Electronic sensor reports an implausible signal after hose and wiring checks | Replace it only after model-specific diagnosis | Avoids unnecessary parts replacement |
| Water enters with the washer unplugged | Inspect or replace the inlet valve | The problem is unlikely to be caused by the level sensor alone |
Some older mechanical switches include a factory calibration screw, but that does not make field adjustment appropriate. Turning it changes the fill threshold and can create unsafe water levels. Unless the appliance service manual provides a model-specific calibration procedure, do not adjust the screw.
For modern electronic pressure sensors, calibration is normally managed by the control system or factory programming. Random adjustment or substitution is not recommended.
A replacement pressure switch for an existing household washer should match the original appliance part number. XKC non-contact liquid level sensors serve a different purpose: they are components for equipment manufacturers, appliance designers, and system integrators developing a liquid detection function around a fixed non-metallic container.
In a smart washing appliance, capacitive sensing may be used to monitor water, detergent, or cleaning solution in a plastic reservoir without placing a probe directly in the liquid. The sensor mounts outside the container and detects a level point through the wall. This approach can reduce direct liquid contact, corrosion, contamination, scale buildup, and mechanical wear. It can also simplify cleaning and maintenance because the reservoir does not need to be drilled for an immersed probe.

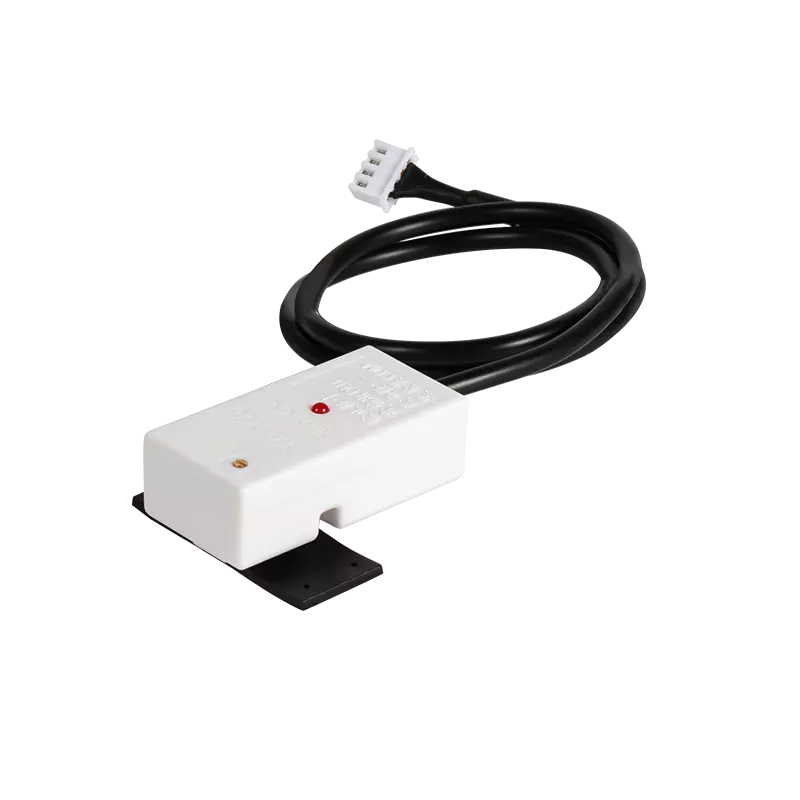

For compact detergent reservoirs or space-constrained appliance designs, the XKC-Y23A small-size liquid level sensor is designed for external detection through non-metallic containers and provides NPN or high/low-level output options. For larger or thicker-walled plastic containers, the XKC-Y25 non-contact liquid level sensor supports multiple output configurations, including switching outputs and RS485.
These examples should not be treated as universal replacements for a washer’s original tub pressure sensor. Suitability depends on the actual container, liquid, mounting point, control logic, and operating environment.
Before selecting a non-contact capacitive liquid level sensor for a washing machine or related appliance, confirm:
Container material and wall thickness
Flat or curved mounting surface
Water, detergent, or cleaning solution characteristics
Foam, residue, condensation, and temperature changes
Available installation space
Required supply voltage and output signal
Control-board or relay compatibility
High-level, low-level, overflow, or refill logic
EMC conditions and cable routing
Required ingress protection and compliance
Accurate detection depends on matching and calibrating the sensor to the real container and medium. XKC Sensor provides custom sensor development and application support for OEM home-appliance and industrial projects, including requirement analysis, prototype verification, small-batch trials, and production scaling.
For consumer appliance repair, use the washer model number and the original component number. The model label is commonly located around the door opening, under the lid, on the rear panel, or near the control console.
Check the following before ordering:
Exact washer model and production revision
Original sensor or pressure-switch part number
Electrical connector shape and pin arrangement
Pressure hose connection size
Mounting bracket and orientation
Manufacturer-approved cross-reference
Visual similarity is not enough. Two pressure sensors may fit the same space but use different pressure ranges or output signals. An incompatible part can cause incorrect filling, cycle errors, or control-board damage.
OEM appliance parts generally provide the most reliable match. If an aftermarket replacement is considered, verify the cross-reference, warranty, return policy, and compatibility with the exact washer revision. Do not modify terminals or wiring simply to make an unverified part fit.
If model-specific instructions confirm that the sensor should be replaced:
Unplug the washer and close both water supply valves.
Wait for stored electrical energy to dissipate as directed by the service manual.
Open the specified access panel.
Photograph the wiring, hose routing, and mounting position.
Disconnect the wiring connector by its housing, not by pulling the wires.
Remove the pressure hose carefully and inspect it again for damage.
Install the exact replacement sensor in the original orientation.
Reconnect the hose so the joint is airtight.
Reconnect the wiring and verify that it is fully seated.
Reinstall all protective panels before reconnecting power.
Run an empty, supervised test cycle using the manufacturer’s service or diagnostic procedure. Confirm that the washer fills to a normal level, stops filling, drains, and advances through the cycle without an error. Be prepared to stop the machine and close the water valves if the level continues to rise.
Do not operate the washer with electrical compartments or protective panels open unless an authorized service procedure specifically requires it and the work is being performed by a qualified technician.
In most top-load washers, the water level sensor is behind the upper control console. In many front-load models, it is beneath the top cover near the rear or side of the cabinet. The component can usually be identified by its small pressure hose and electrical connector.
Before replacing it, inspect the pressure hose, air chamber connection, wiring, inlet valve behavior, and diagnostic codes. A loose or blocked hose can imitate a failed sensor, while an inlet valve that continues flowing without power points to a different fault.
For an existing washer repair, use the exact manufacturer-approved pressure sensor or switch. For OEM appliances that need external monitoring of a fixed plastic water or detergent reservoir, XKC Sensor can provide non-contact capacitive liquid level sensing options and application-based customization. Keeping these two use cases separate makes the repair guidance safer and the product recommendation more accurate.
No. The water level signal is part of the washer’s fill and cycle-control system. Bypassing it can cause overflow, electrical damage, or unsafe operation. Diagnose and replace the faulty component instead.
No. Pressure thresholds, electrical signals, connectors, mounting arrangements, and control-board logic vary by model. Match the replacement to the full washer model number and approved part reference.
Yes. If the control board receives a signal indicating that the tub still contains too much water, it may prevent high-speed spin. However, drain, door-lock, motor, balance, and control faults can produce the same symptom.
The sensor itself normally does not have a user reset button. Disconnecting power may clear a temporary control error on some models, but it will not repair a damaged hose, failed sensor, stuck valve, or wiring fault. Follow the model-specific reset and diagnostic procedure.
Not as a universal repair part. A non-contact capacitive sensor can be integrated into an OEM design for a compatible fixed non-metallic reservoir, but its mounting, signal, calibration, control logic, and safety validation must be engineered for that application.
Contact a qualified appliance technician if the washer is overflowing, the inlet valve does not close, the electronic sensor requires live-signal testing, wiring is damaged, or the service procedure requires operation with protective panels removed.
