Transitioning a physical security or automation project from the design phase to deployment requires precise hardware integration, starting with reliable motion detection. Incorrectly wiring or configuring an infrared sensor leads to critical system failures—including false alarms, missed access events, hardware shorts, or unreliable IoT triggers.
This guide provides a technical, step-by-step framework for connecting an infrared motion sensor, detailing pinout configurations, microcontroller integration, legacy security panel retrofitting, access control wiring, and calibration protocols to ensure reliable deployment.
Standardized Pinouts: Most passive infrared (PIR) sensors utilize a standard three-pin configuration (VCC, GND, OUT/Signal) that must be matched precisely to the controller's logic voltage to prevent hardware damage.
Integration Flexibility: An infrared sensor can be wired directly to microcontrollers (like Arduino), connected to relay modules for high-voltage switching, integrated into enterprise access control boards, or linked to multi-zone smart home conversion bridges.
Calibration is Mandatory: Physical wiring is only half the implementation; adjusting onboard potentiometers for sensitivity and time delay, alongside conducting physical walk tests, is required to align the sensor with specific environmental success criteria.
Risk Mitigation: Proper deployment requires accounting for thermal interference, voltage drop across long cable runs, correct path-of-travel alignment, and physical placement to eliminate blind spots and false positives.

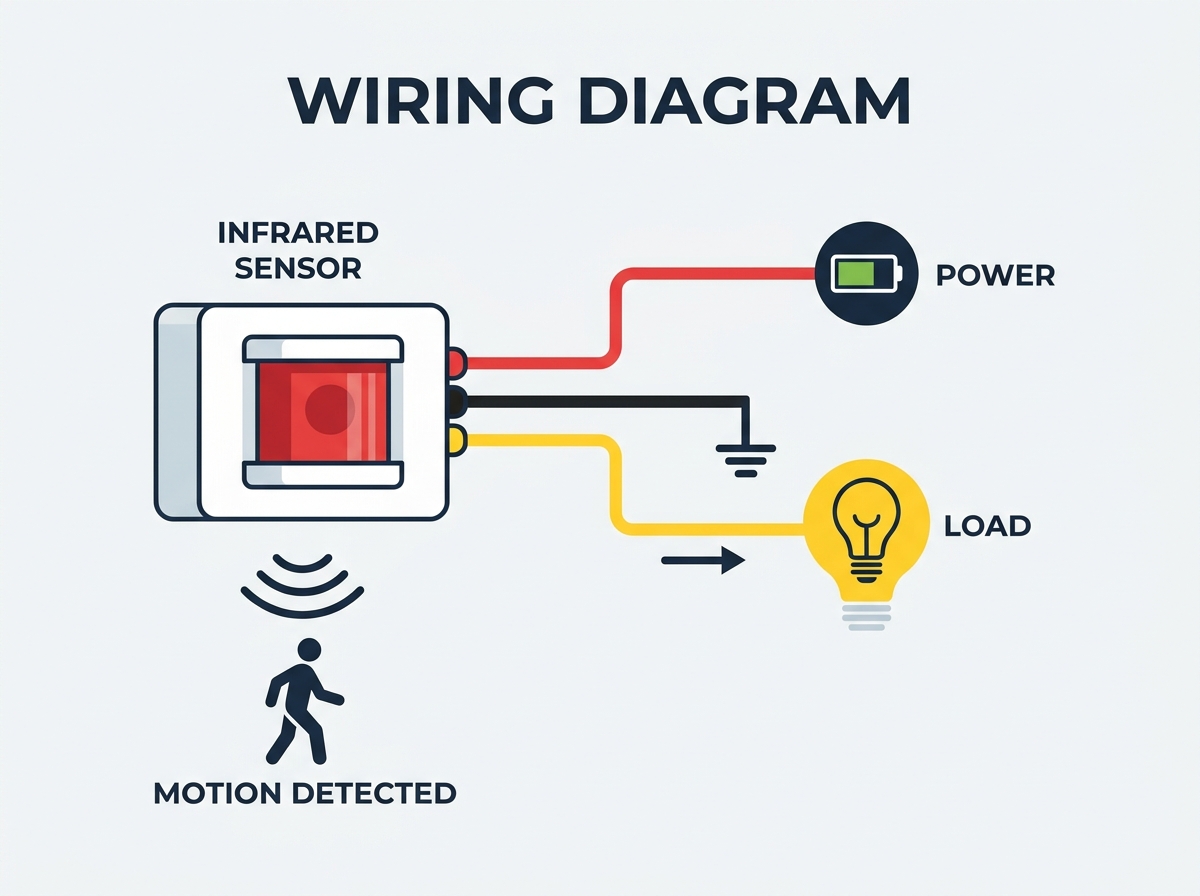

Most basic motion detection modules rely on a standard three-pin layout. Understanding these connections is the foundation of a successful installation. The VCC pin supplies power to the module. Typical voltage requirements range from 3.3V to 5V DC for microcontrollers, while security panels often require 12V DC. Applying excessive voltage to the VCC pin will permanently damage the logic board, blowing the onboard voltage regulator or the sensor element itself.
The GND (Ground) pin establishes a common ground reference with the controller board. Without a shared ground, the signal voltage will float, causing erratic readings and false triggers. Finally, the OUT (Digital Signal) pin transmits the detection data. When the unit detects a thermal shift, this pin outputs a high or low logic state to the receiving controller.
| Pin Designation | Function | Typical Voltage / State | Wiring Destination |
VCC | Power Supply | 3.3V, 5V, or 12V DC | Positive terminal on power supply or microcontroller 5V pin |
GND | Ground Reference | 0V | Common ground bus or microcontroller GND pin |
OUT / SIGNAL | Detection Output | HIGH (3.3V/5V) or LOW (0V) | Digital input pin on controller or relay trigger pin |
Choosing the right hardware depends on your specific application. Passive sensors detect ambient heat signatures moving across their field of view. They do not emit energy, making them highly power-efficient and ideal for standard room monitoring. You will typically find these in office lighting controls, residential alarm systems, and basic automation projects.
Active photoelectric units require wiring for both an emitter (transmitter) and a receiver to establish an invisible detection beam. When a physical object breaks this beam, the circuit opens and triggers the event. Active units are generally preferred for perimeter defense, gate controls, or specific choke points where you need a definitive line-crossing detection. Consider power availability, distance requirements, and environmental constraints when making your selection. Active beams require power runs to both sides of the detection zone, which increases installation labor and cable requirements.
Effective motion detection relies heavily on physical placement. Map the Field of View (FOV) before mounting any hardware. Standard wall mounts typically offer a 90 to 110-degree spread, while ceiling mounts can provide 360-degree volumetric coverage. Optimizing the path of travel dictates how well the unit performs. Mounting the device so targets walk across the detection zones radially is far more effective than having them walk directly toward the lens. The internal pyroelectric elements detect changes between alternating positive and negative zones; lateral movement crosses these zones faster.
Standard mounting height usually falls between 2.0 to 2.4 meters (6.5 to 8 feet). This height maximizes volumetric coverage while helping to prevent pet-triggered false positives. Always identify potential blind spots. Structural barriers, tall furniture, and incorrect mounting angles severely impact the effective range.
Review the floor plan to identify primary entry points and high-traffic corridors.
Select a mounting location that forces lateral movement across the sensor's field of view.
Measure the mounting height to ensure it aligns with the manufacturer's specified optimal range (usually 7 feet).
Check for physical obstructions like open doors, shelving units, or hanging light fixtures that might block the lens.
Verify that the chosen location allows for accessible cable routing back to the main control panel.
These devices detect rapid changes in thermal energy. Consequently, environmental factors play a massive role in performance. Placing a unit near air vents, radiators, or areas exposed to direct sunlight frequently causes false triggers. The rapid heating and cooling of the air or surrounding surfaces mimic human movement to the pyroelectric element.
Establish baseline ambient temperatures for accurate calibration. Environments with extreme temperature fluctuations, such as uninsulated garages or warehouse loading docks, may require specialized dual-technology units to maintain reliability. Drafts from poorly sealed windows can also cause sudden temperature shifts, so keep the lens pointed away from exterior glass whenever possible.
Integrating a basic module with a microcontroller like an Arduino is straightforward. Connect the VCC pin to the 5V or 3.3V output on the board, depending on the module's specifications. Connect the GND pin to the Arduino's ground. Finally, route the OUT pin to a designated digital input pin on the microcontroller.
In your code logic, you will read the digital pin state. Ensure you handle pull-up or pull-down resistor configurations if the module does not include them internally. Implementing signal debouncing in the software helps prevent multiple rapid triggers from a single motion event. A simple delay or millis() timer in your code will ensure that a single detection event does not flood your serial monitor or trigger an output relay multiple times in rapid succession.
You often need to trigger high-voltage devices like lighting or heavy alarms using a low-voltage logic signal. This requires a relay module. Never route high voltage directly through the logic circuit. Connect the OUT pin to the relay module's input (IN) pin.
Ensure both the module and the relay share a common ground. You must also provide isolated power supplies for high-amperage loads to prevent electrical noise from interfering with the delicate logic circuitry. When the relay coil energizes, it can create a voltage spike; using a relay module with optical isolation or a built-in flyback diode protects your microcontroller and sensor from back EMF.
Connecting standard security units to legacy alarm systems or smart home conversion panels requires a different approach. Connect the power terminals (+/-) on the device to the auxiliary 12V power supply on the panel. Route the alarm contact terminals (NC/C) to the designated Zone and Ground (G) terminals.
Professional installations utilize supervision circuits. Integrating End-of-Line (EOL) resistors allows the panel to monitor wire integrity. If a wire is cut or shorted, the panel detects the resistance change and triggers a tamper alarm. The EOL resistor is typically wired in series with the Normally Closed (NC) contacts at the sensor end of the cable run, not inside the panel enclosure.
These devices are frequently used as Request-to-Exit (REX) triggers on secure doors. Connect the signal wires to the Zone/Input terminals and Ground on the access control panel. The panel interprets the motion signal to unlock the door temporarily, shunting the door position switch to prevent a forced door alarm.
Always perform a compliance check. Ensure your fail-safe versus fail-secure lock configurations align with local fire codes when using motion-triggered exits. Life safety always supersedes security protocols. In many jurisdictions, a REX device must drop power to a magnetic lock directly, in addition to signaling the access control panel, requiring a double-pole double-throw (DPDT) relay configuration inside the REX unit.
Physical wiring is only the first step. Most modules feature onboard potentiometers for fine-tuning. The Sensitivity (Sx) adjustment controls the detection distance. Adjusting this from 3 meters to 7 meters prevents the unit from triggering on movement outside the target zone, such as people walking in a hallway outside a glass-walled office.
The Time Delay (Tx) adjustment dictates how long the OUT pin remains HIGH after motion stops. This can range from 3 seconds to several minutes, depending on whether you are triggering a quick camera snapshot or keeping room lights on. Use a small Phillips or flathead screwdriver to make incremental adjustments, testing the response after each turn.
Many modules include jumper pins to select the trigger mode. In Single Trigger (Non-repeatable / L-position) mode, the output goes LOW after the time delay expires, regardless of continued motion inside the zone. This is useful for discrete counting applications where you want to register individual events rather than continuous presence.
In Repeatable Trigger (H-position) mode, the time delay resets as long as continuous motion is detected. The output remains HIGH until the area is clear and the timer runs out. This setting is ideal for occupancy lighting and general security monitoring, ensuring the lights do not shut off while someone is still working in the room.
Never deploy a system without a physical walk test. Use the onboard LED indicator lights to visually verify detection limits without having to check the digital controller output constantly. Walk across the intended detection zones at various speeds and angles to map the exact boundaries of the coverage area.
Make systematic adjustments to physical mounting brackets and maskings (shrouds) to narrow the detection field if necessary. Tape or physical blockers can restrict the lens view to eliminate specific problem areas, such as a ceiling fan or a window that catches moving shadows.
Pets, rapid temperature shifts, and reflective surfaces will trigger poorly placed units. To mitigate these issues in high-security environments, utilize dual-technology hardware. These combine PIR and Microwave detection, requiring both a thermal shift and physical displacement to trigger an alarm, drastically reducing false positives. The microwave component emits Doppler radar pulses, confirming the physical mass movement detected by the passive thermal element.
Long cable runs between the device and the control board cause voltage drops. This leads to erratic behavior, false alarms, or constant rebooting. Mitigate this by using appropriate wire gauges, such as 18-22 AWG shielded cable. Calculate the voltage drop for runs exceeding 50 feet and install auxiliary power supplies near the device if necessary.
| Cable Length (Feet) | Recommended Wire Gauge (AWG) | Voltage Drop Risk Level |
0 - 50 | 22 AWG | Low |
51 - 150 | 20 AWG | Moderate |
151 - 300+ | 18 AWG | High (Auxiliary power recommended) |
Malicious actors may attempt to block the lens with thermal-insulating materials, clear tape, or spray paint. Implement anti-masking technology, which uses active transmitters to sense objects placed abnormally close to the lens. Additionally, wire physical tamper switches on the housing to a dedicated, 24-hour security zone on the panel. If someone attempts to pry the cover off to access the wiring, the tamper switch opens and triggers an immediate alarm, regardless of whether the main system is armed or disarmed.
Wire the module on a breadboard or bench test environment to verify logic states and potentiometer settings before permanently mounting and routing cables.
Calculate the total cable distance from the control panel to the mounting location to determine the correct wire gauge and prevent voltage drop.
Perform a comprehensive walk test using the onboard LED indicators to map the exact detection boundaries and adjust the sensitivity dial accordingly.
Install End-of-Line (EOL) resistors at the sensor location, not inside the panel, to ensure full supervision of the cable run against shorts and cuts.
A: Most commercial modules have built-in resistors and voltage regulators, allowing direct connection to digital input pins. Always verify the specific module's datasheet, as raw phototransistors do require pull-up or pull-down resistors to prevent floating signals.
A: This is typically caused by the time delay potentiometer being set too high, continuous thermal interference in the room like a nearby heater, or a repeatable trigger jumper setting combined with constant micro-movements.
A: For security applications, wire sensors as Normally Closed (NC). This ensures that if an intruder cuts the wire, the loop opens, immediately triggering an alarm state. Normally Open (NO) is typically reserved for secondary trigger circuits.
A: Yes. For Normally Closed (NC) configurations, wire the devices in series. If any unit detects motion, the circuit opens. Note that wiring multiple units to a single zone makes it impossible to identify which specific device triggered the event.
A: For short runs under 50 feet, standard 22 AWG alarm wire is usually sufficient. For longer runs or when powering multiple units on a single line, upgrade to 18 AWG to prevent significant voltage drop that causes erratic behavior.
