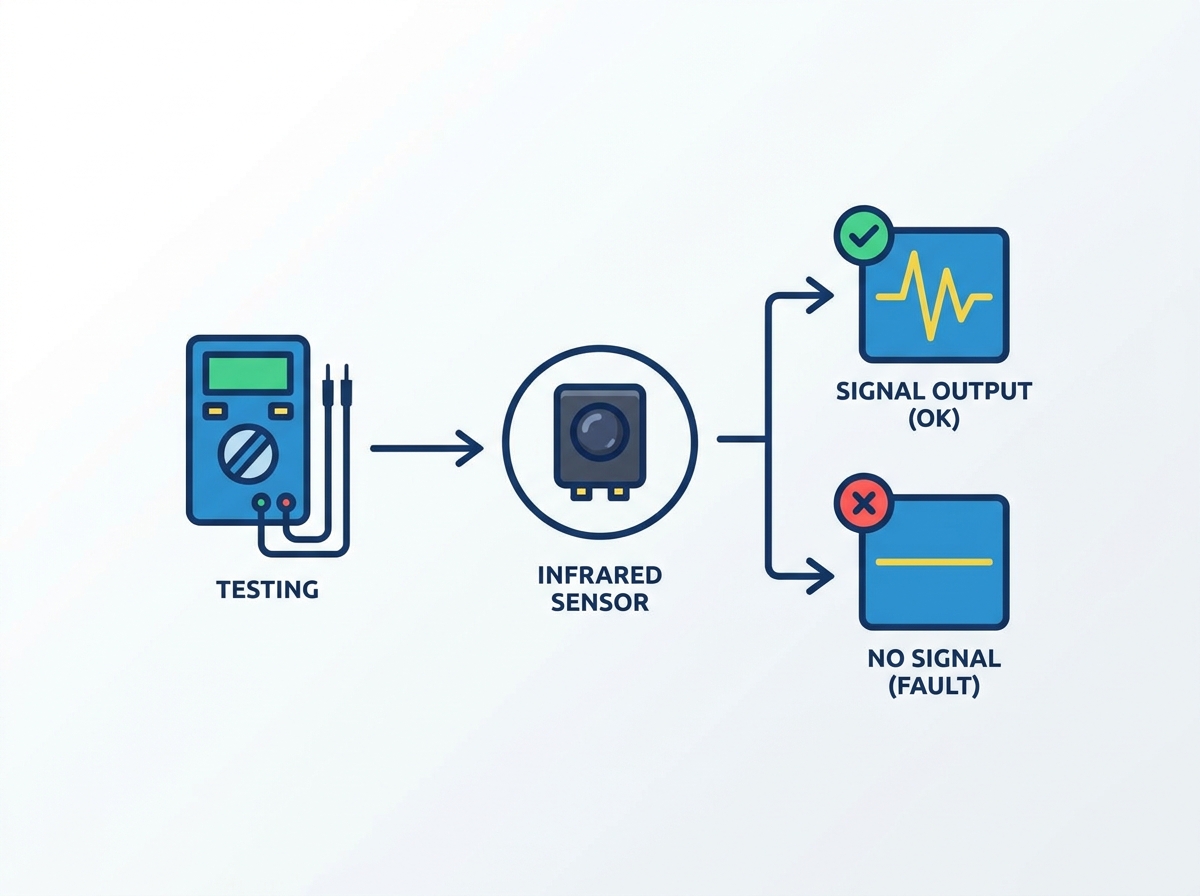

Diagnosing hardware failures requires isolating the exact point of malfunction. When an automated system or consumer device stops responding, engineers must determine if the fault originates from the infrared sensor, the surrounding power circuit, or the software logic processing the signal. Infrared technology forms the backbone of modern hardware communication, spanning from basic remote controls to complex industrial automation networks. Identifying a failure quickly prevents extended downtime and unnecessary component replacement. This guide provides a systematic approach to hardware validation. You will learn how to execute a tiered diagnostic strategy. We start with preliminary visual checks and advance to circuit-level validation and serial data monitoring. By isolating the emitter from the receiver and verifying signal integrity, technicians can accurately pinpoint hardware anomalies and restore system functionality.
Tiered Diagnostic Approach: Effective troubleshooting begins with simple visual confirmation (e.g., digital camera tests) before escalating to electrical and logic-level validation.
Component Isolation: Accurately diagnosing a fault requires isolating the IR emitter (LED) from the IR receiver (photodiode/phototransistor) to identify the exact point of failure.
Electrical Integrity: Many perceived sensor failures are actually circuit-level issues, such as leaking circuits, open circuits, or incorrect voltage supply.
Data Validation: Verifying sensor functionality requires reading the actual IR commands via a serial monitor or oscilloscope to ensure signal integrity and correct protocol decoding.
Environment Compatibility: Software diagnostics rely on choosing the right development environment (e.g., Arduino C++, CircuitPython, or Python) to match hardware-level timing requirements.
A fully functional component must meet specific operational baselines. Consistent signal transmission and reception are mandatory for any optical communication system. The hardware must demonstrate correct wavelength matching between the emitter and receiver. Accurate data decoding without packet loss confirms the logic layer is operating normally. When these parameters align, the component passes baseline validation. Technicians must verify that the signal amplitude remains stable across the entire operating temperature range. Voltage levels at the receiver output should toggle cleanly between the supply voltage and ground. Any deviation from these expected states indicates a potential hardware fault or environmental interference issue.
Field diagnostics require a clear understanding of what constitutes a pass or fail state. We look for specific electrical signatures. The receiver must pull the data line low only when a valid carrier frequency is detected. False triggering from ambient light means the internal automatic gain control has failed. The emitter must draw the correct forward current to produce adequate optical power. Measuring these parameters establishes a baseline for comparing suspected faulty components against known good units.
Testing an IR emitting diode differs fundamentally from testing a receiver. The emitter acts as a specialized LED that broadcasts modulated light pulses. It requires a driving circuit capable of handling high peak currents. The receiver, typically a photodiode or phototransistor combined with an internal demodulator, detects and translates these pulses into electrical signals. Wavelength mismatch between these two components frequently leads to false failure readings. If an 850nm emitter pairs with a 940nm receiver, the resulting signal degradation mimics a hardware failure despite both components functioning correctly.
You must isolate the two halves of the communication link. Emitters fail primarily due to thermal degradation or overcurrent events. Receivers fail from electrical overstress or physical damage to the optical window. Diagnostic procedures must account for these different failure mechanisms. A receiver might output a clean signal, but if the emitter output is too weak, the system fails at range. Conversely, a strong emitter cannot overcome a receiver with a damaged internal amplifier.
| Component Type | Primary Function | Common Failure Mode | Diagnostic Focus |
IR Emitter (LED) | Transmits modulated optical pulses | Thermal degradation, open circuit | Forward voltage drop, optical output power |
IR Receiver Module | Detects and demodulates optical signals | Electrical overstress, AGC failure | Output waveform integrity, supply voltage stability |
Photodiode (Raw) | Converts light to current | Physical damage to optical window | Reverse bias leakage current, resistance change |
Physical degradation directly impacts component lifespan. Thermal stress and prolonged environmental exposure degrade the semiconductor materials. High operating temperatures cause the epoxy packaging to yellow, reducing optical transmissivity. Common electrical faults include open circuits caused by broken PCB traces or blown surface-mount components. Leaking circuits introduce parasitic drain, severely reducing the signal-to-noise ratio. These issues often manifest as intermittent failures that are difficult to track down without proper isolation techniques.
Consumer electronics often exhibit specific failure patterns. Degraded receiver modules in LED televisions and smart appliances frequently fail after years of thermal wear near internal power supplies. Industrial sensors face different challenges, such as vibration-induced solder joint fractures or chemical degradation of the lens. Identifying the operating environment helps predict the most likely failure mode. A sensor mounted on a vibrating motor housing is more likely to suffer mechanical failure than one installed in a climate-controlled server rack.
Digital camera sensors inherently detect infrared radiation. Manufacturers install IR-cut filters over the lenses to replicate human vision, but many smartphone front-facing cameras or older digital camcorders lack strong filtering. This physical characteristic allows technicians to visualize invisible optical pulses. It provides an immediate, zero-cost method for verifying emitter operation before opening the device enclosure.
Follow these steps to perform a visual verification:
Activate the camera application on a smartphone or tablet. Switch to the front-facing camera if the rear camera has an aggressive IR filter.
Aim the suspected faulty emitter directly at the camera lens from a distance of two to three inches.
Trigger the device to send a command. For a remote control, press and hold any button.
Observe the digital display for a characteristic purple or white flash emanating from the diode.
Distinguish between continuous signals by holding a key down and pulsed signals by watching the intermittent flashes on the screen.
This visual feedback confirms the emitter is drawing power and broadcasting radiation. However, it does not verify the carrier frequency or the data payload. A diode might emit light but fail to modulate it correctly. Therefore, the camera test serves only as a preliminary triage step. If you see the flash, the power circuit and the diode are likely intact, pointing the investigation toward the receiver or the logic board.
Software tools assist in verifying hardware presence before physical disassembly. Specialized diagnostic applications query a mobile device’s hardware manifest. These apps determine if a phone or tablet physically contains an internal IR blaster. Confirming the hardware exists at the operating system level prevents wasted time troubleshooting software configurations on unsupported devices. Many modern smartphones have removed this hardware, leading to confusion when legacy control applications fail to operate.
When using diagnostic apps, look for specific hardware identifiers. The application should report the manufacturer and the supported carrier frequencies. If the app reports the hardware is present but the device fails to transmit, the issue likely resides in the application permissions or a low-level driver fault. This software-first approach saves hours of unnecessary teardowns. It isolates the problem to the software stack rather than the physical hardware layer.
A digital multimeter provides precise electrical validation. Set the meter to diode test mode to measure the forward voltage drop of an emitter diode. A healthy component typically shows a drop between 1.1V and 1.5V, depending on the specific semiconductor chemistry. Readings outside this range indicate a degraded junction or a completely blown component. Next, measure the resistance across a raw photodiode receiver. The resistance should drop significantly when exposed to a strong optical source. This confirms the semiconductor material is still reacting to photons.
In-circuit testing requires verifying the power delivery. Check the VCC, GND, and OUT pins on the receiver board. Ensure the supply voltage matches the component datasheet, usually 3.3V or 5.0V. Voltage sags during operation indicate power supply issues rather than a faulty detection module. Use the multimeter to check for continuity between the sensor pins and the main microcontroller. A broken trace will prevent the demodulated signal from reaching the logic processor, mimicking a dead sensor.
| Test Point | Expected Value (Healthy) | Fault Indication |
Emitter Forward Voltage | 1.1V - 1.5V | 0V (Short) or OL (Open) |
Receiver Supply (VCC) | 3.3V or 5.0V (Stable) | Fluctuating voltage, significant sag |
Receiver Output (Idle) | Equal to VCC (High) | Stuck low (0V) or floating |
Receiver Output (Active) | Toggling between VCC and GND | No voltage change during transmission |
An oscilloscope reveals the exact waveform of the demodulated signal. Probe the output pin of the receiver while transmitting a command. A healthy signal displays clean, sharp square waves dropping from VCC to ground. The rise and fall times should be rapid, typically in the microsecond range. A degraded signal exhibits excessive noise, rounded wave edges, or erratic timing. These anomalies suggest incorrect carrier frequency detection or internal component failure within the receiver's amplifier stage.
Analyzing the waveform provides deep insights into system health. If the square waves are present but the logic board fails to respond, the issue lies in the software decoding routine. If the waveform is heavily distorted, the receiver might be saturated by ambient light or suffering from a noisy power supply. Use the oscilloscope to measure the pulse widths. They should match the expected timing for the specific protocol being used. Deviations in pulse width indicate a failing oscillator in the transmitting device.
Sensor behavior relies heavily on the surrounding circuit. Trace the PCB path to rule out external factors. Faulty pull-up resistors prevent the output line from returning to a high state quickly enough, corrupting the data payload. Degraded decoupling capacitors allow power supply noise to trigger false readings. Inadequate power routing leads to erratic behavior that mimics a failing optical component. You must inspect the entire signal path, not just the sensor itself.
Look for signs of water damage or corrosion around the component leads. Parasitic resistance caused by flux residue or moisture can alter the bias voltage of the receiver, reducing its sensitivity. Clean the board thoroughly with isopropyl alcohol before condemning the sensor. Verify that the ground plane is solid and free of cracks. A poor ground connection will cause the output signal to float, leading to unpredictable logic levels at the microcontroller input.
Wiring a sensor to a microcontroller facilitates logic-level testing. Connect the VCC, GND, and signal pins to an Arduino or similar development board. Different development ecosystems offer varied testing frameworks. C++ environments provide low-level interrupt control for precise timing measurements. Python-based boards offer rapid deployment for basic signal validation. Practical applications include configuring a basic signal cloner to verify the hardware can capture and replicate specific protocol timings.
When setting up the test rig, ensure the logic levels match. Feeding a 5V signal into a 3.3V microcontroller will damage the input pin. Use a logic level converter if necessary. Write a simple script to attach an interrupt to the input pin. Have the script print the time between state changes. This raw timing data allows you to reconstruct the received signal and verify that the hardware is capturing the full transmission without dropping pulses.
Software validation requires monitoring the raw data output. Open a serial monitor in your development environment. Configure the correct baud rate, which is commonly 9600 bps for standard microcontroller diagnostics. When the sensor receives a command, the monitor displays hexadecimal values or raw timing marks. This data confirms that the logic layer is successfully interpreting the electrical pulses generated by the receiver.
To validate a remote controller, press specific buttons while watching the serial output. Confirm that the receiver outputs the correct, repeatable hex payload. The data must match the expected protocol structure without generating random noise strings. If you press the same button three times, you should see the exact same hexadecimal value printed three times. Any variation indicates a problem with the signal integrity or the decoding algorithm.
Software testing introduces specific pitfalls. Blocking code loops prevent the microcontroller from capturing rapid signal interrupts. If the processor is busy executing a delay function, it will miss the incoming pulses, resulting in a corrupted payload. Incorrect timer configurations alter the perceived pulse widths, causing the decoding library to reject valid commands. Protocol mismatches, such as attempting to decode an RC5 signal using an NEC library, result in continuous error outputs despite healthy hardware.
Always use established, well-tested libraries for decoding. Writing a custom decoder from scratch introduces too many variables during a diagnostic procedure. Ensure the microcontroller is running at the correct clock speed. A mismatched clock will skew all timing measurements. Keep the test code as simple as possible. The goal is to validate the hardware, not to build a complex application. Strip away any unnecessary functions that might interfere with the interrupt routines.
Selecting a replacement requires strict adherence to original specifications. Match the peak spectral sensitivity of the new receiver to the existing emitter. Most systems operate at either 940nm or 850nm. Mixing these wavelengths drastically reduces operational range. Evaluate the lens shape and package design. A domed lens narrows the field of view but increases maximum detection distance, while a flat package offers wider angular reception. You must choose a package that fits the physical constraints of the device enclosure.
Consider the carrier frequency. Standard consumer receivers operate at 38kHz, but some systems use 36kHz, 40kHz, or 56kHz. Installing a 38kHz receiver in a 56kHz system will result in severely degraded performance or complete failure. Check the datasheet of the original component or use an oscilloscope to measure the carrier frequency of the emitter before ordering a replacement. Getting these specifications wrong guarantees the repair will fail.
Ambient noise heavily impacts optical detection. Sunlight and high-frequency fluorescent lighting emit broad-spectrum radiation. This saturates standard receivers, blinding them to the intended signal. Compare standard modules against those featuring built-in daylight filters and automatic gain control. AGC dynamically adjusts internal sensitivity to ignore continuous ambient noise while capturing pulsed data commands. If the device operates outdoors or in a brightly lit factory, an AGC-equipped receiver is mandatory.
Physical shielding also plays a role. Ensure the replacement component is installed with the correct optical baffles. These plastic or metal shields block off-axis light from hitting the sensor die. If the original baffles were damaged during disassembly, they must be repaired or replaced. Relying solely on the electronic filtering of the receiver is often insufficient in harsh lighting environments. Proper mechanical integration is just as important as electrical compatibility.
Engineers must balance component specifications against long-term reliability. Consider power consumption constraints for battery-operated devices. Some high-performance receivers draw significantly more quiescent current than standard models, leading to premature battery drain. Evaluate the component's tolerance to electrical noise generated by nearby motors or power supplies. Selecting a robust module ensures stable operation across varying environmental conditions. Always source components from reputable distributors to avoid counterfeit parts that fail to meet datasheet specifications.
When integrating the new infrared sensor, pay attention to the soldering process. Excessive heat will damage the internal wire bonds or melt the epoxy lens. Use a temperature-controlled soldering iron and work quickly. Clean all flux residue from the board, as it can cause parasitic leakage currents that degrade the signal. After installation, repeat the oscilloscope and serial monitor tests to confirm the repair was successful before reassembling the device enclosure.
Definitively validating hardware requires moving beyond basic visual checks. Rigorous electrical testing and software logic validation isolate the exact failure point. Implement these next steps to streamline your diagnostic workflow:
Document all voltage drops and waveform anomalies observed during multimeter and oscilloscope testing to build a baseline for future repairs.
Verify the exact carrier frequency and wavelength specifications before sourcing replacement components to ensure system compatibility.
Utilize a microcontroller and serial monitor to confirm the new component accurately decodes the required protocol payloads without dropping packets.
Ensure the replacement module features appropriate daylight filtering and automatic gain control if deployed in high-glare environments.
A: Start with a visual check using a digital camera to see if the emitter flashes. Then, use a multimeter to verify voltage at the receiver pins. Finally, connect it to a microcontroller to read the decoded serial data.
A: Yes. Many smartphone cameras, particularly front-facing ones, lack strong optical filters. Pointing an active emitter at the lens will display a visible purple or white light on the screen.
A: The standard baud rate for basic microcontroller testing is typically 9600 bps. This speed ensures stable data transmission for reading hexadecimal payloads without dropping characters.
A: Random data usually indicates environmental interference from sunlight or fluorescent lights. It can also result from a noisy power supply, a missing pull-up resistor, or a protocol mismatch in the decoding software.
A: Use a digital multimeter set to continuity or resistance mode. Probe the traces between the component pins and the main logic board to ensure there are no broken connections or blown inline resistors.
A: Prolonged exposure to thermal stress, high operating currents, and environmental factors like humidity degrade the semiconductor materials, reducing emission strength and receiver sensitivity.
A: Check the standby power supply to the receiver board first. Measure the VCC and GND pins for stable voltage. Probe the signal output pin with an oscilloscope while pressing the remote to verify waveform integrity.
