Detection accuracy drives the success of modern automation, security, and IoT systems. Engineers know sensor selection dictates system reliability on the ground. Choosing the wrong component leads to severe operational failures. You might face false alarms, missed detections, or excessive power consumption. Hardware can fail prematurely in harsh environments, leaving sites vulnerable. These issues disrupt operations and require immediate troubleshooting from maintenance teams. This technical evaluation matrix helps engineers and system architects compare architectures directly. We will examine active and passive technologies to see how they perform in real-world conditions. You must align sensor capabilities with specific deployment environments to avoid constant recalibration. Understanding these differences ensures you meet your project success criteria from day one. Selecting the right infrared sensor prevents costly redesigns and field failures down the line.

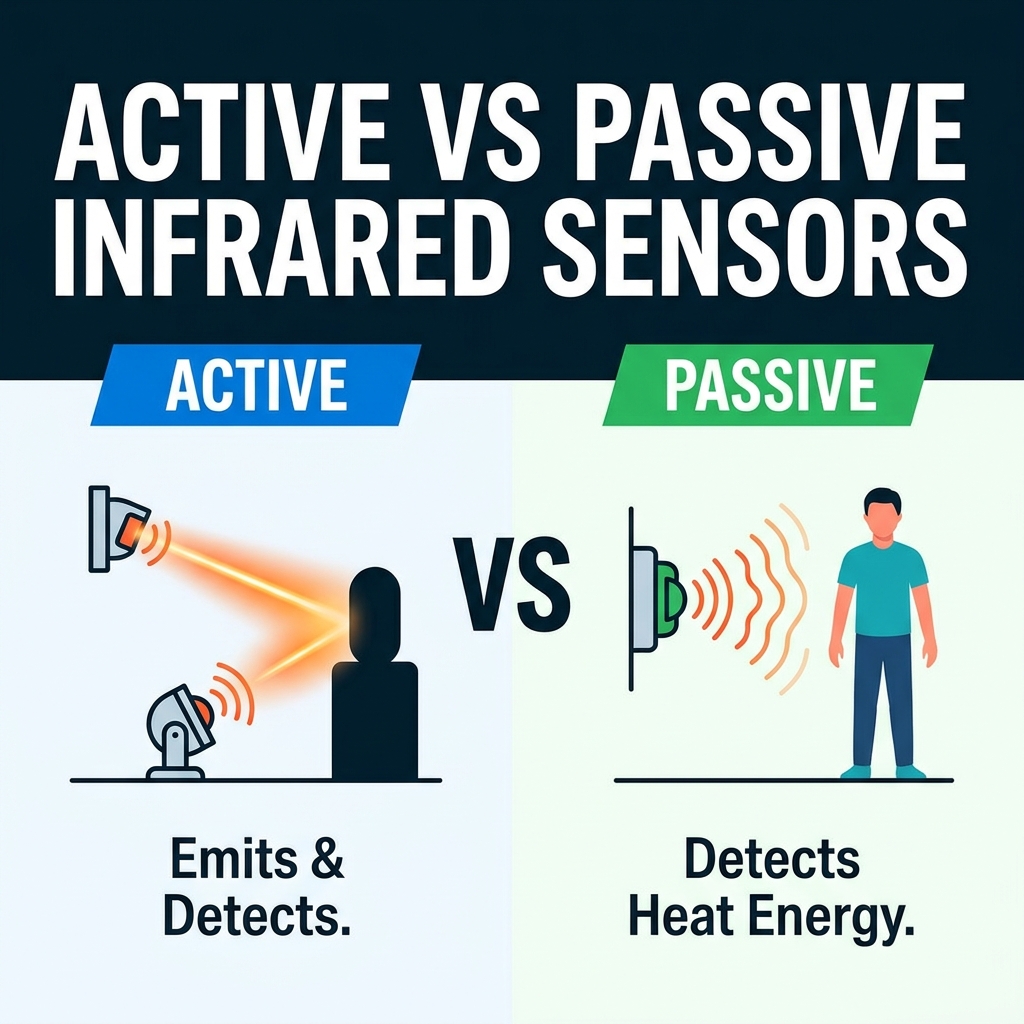

Fundamental Distinction: Active sensors emit and detect infrared energy (measuring reflection or beam interruption), while passive systems do not emit any signal, relying strictly on detecting infrared radiation emitted by objects in their field of view.
Power and Efficiency: Passive systems draw significantly less power, making them ideal for battery-operated and energy-sensitive IoT deployments.
Environmental Sensitivity: Active systems are highly resilient to ambient temperature fluctuations but susceptible to physical obstructions (fog, heavy rain), whereas passive systems struggle in environments where ambient temperatures match the target's thermal signature.
Application Alignment: Active sensors excel in precision tasks (object counting, perimeter tripwires), while passive sensors dominate broad-area motion detection (occupancy sensing, HVAC control).
The infrared spectrum exists just beyond human vision. It divides into near-infrared and far-infrared bands. Engineers use this spectrum for reliable non-contact detection across various industries. Objects interact with infrared light differently based on their physical properties, surface textures, and thermal mass. This interaction forms the baseline for optical sensing technology used in everything from simple door openers to complex perimeter security grids. Understanding the physics behind these bands helps field technicians troubleshoot erratic behavior during extreme weather conditions or unexpected environmental changes.
An active infrared sensor utilizes a dual-component architecture. The system contains an emitter and a receiver. The emitter uses an IR light-emitting diode (LED) or a laser diode to project light. The receiver relies on a matched photodiode or phototransistor to catch that specific light. These components work together to form a complete optical circuit that monitors a physical space. When you install these units, alignment is critical. Even a slight deviation in the mounting angle can degrade the signal strength, leading to intermittent drops.
The emitter projects a continuous or modulated infrared beam across the target area. The receiver monitors this specific optical signal constantly. When an object enters the detection zone, it alters the returned signal by either blocking it or reflecting it. The receiver detects this change and triggers an output state to the control panel. Modulating the beam prevents interference from ambient light sources like direct sunlight or high-intensity factory lighting. We often use specific pulse frequencies to ensure the receiver only responds to its paired emitter.
Engineers deploy two primary configurations for active systems in the field. Break-beam setups place the emitter and receiver opposite each other across a gap. The system triggers upon beam interruption, acting like an invisible tripwire. Reflective setups house the emitter and receiver together in one unit. They rely on signal reflection bouncing off a target object or a retro-reflective mirror. Reflective setups save wiring time since you only need to pull cables to one side of the detection zone.
Field technicians must account for surface reflectivity when using bounce-back configurations. Dark, matte, or porous materials absorb infrared light, reducing the effective range. Shiny, metallic, or white surfaces reflect light well, allowing for longer detection distances. You must test the specific target material during the design phase to ensure reliable operation. Adjusting the sensitivity potentiometer on the sensor housing helps fine-tune the detection threshold for tricky materials.
A passive infrared sensor functions entirely as a receiver. It emits zero radiation into the environment. It waits for thermal energy to enter its field of view. This passive nature defines its operational characteristics and energy profile. Because it does not power an emitter, the internal circuitry remains extremely simple and highly efficient. You will find these sensors in almost every commercial building, quietly monitoring hallways and offices without drawing significant current.
PIR sensors rely on pyroelectric materials like lithium tantalate. These materials generate a temporary electrical voltage when exposed to thermal changes. They react to the infrared energy emitted by warm objects, such as human bodies or vehicle engines. The sensor measures the delta in received thermal energy against the background temperature. If the background is a cold concrete floor and a warm person walks across it, the sensor registers a massive spike in thermal contrast.
Optical design plays a crucial role in passive systems. A multi-segmented Fresnel lens or parabolic mirror covers the sensor element. This optic creates distinct detection zones across the coverage area, acting like a series of invisible fingers reaching into the room. It focuses ambient infrared energy directly onto the pyroelectric element. The quality of this lens dictates the sensor's range and sensitivity. Dirt, dust, or grease on the lens will severely degrade performance by blocking the thermal energy from reaching the internal element.
PIR sensors detect movement rather than stationary heat. A heat signature must cross between optical zones to trigger an alarm. This movement creates an alternating signal on the pyroelectric element as the heat source moves in and out of the focal points. Stationary objects do not trigger a voltage change, which is why lights sometimes turn off if you sit perfectly still in an office. You have to wave your arms to cross a detection zone and reset the timer.
Active sensors utilize a narrow, highly targeted detection path. They form a linear beam between the emitter and receiver or target. This makes them perfect for guarding specific perimeters, like the top of a fence or a doorway. Passive sensors monitor a wide, volumetric, fan-shaped detection area. They cover broad spaces rather than single lines. You use them to monitor entire rooms, courtyards, or warehouse aisles where targets could approach from any direction.
Engineers manipulate detection zones differently for each technology. Passive systems use external optical lenses to shape volumetric zones. You can swap lenses to change a wide-angle detector into a long-range corridor detector. Active systems use internal collimating lenses to focus the emitted beam tightly. This focusing ensures maximum signal strength over long distances. You cannot easily change the beam shape of an active sensor in the field; you must select the correct model for the required distance.
Active sensors typically operate in the Near-Infrared (NIR) spectrum. They use wavelengths between 850 nm and 940 nm. This range allows for efficient, low-cost active emission sources. LEDs and laser diodes perform exceptionally well in this band. The 850 nm wavelength sometimes produces a faint red glow visible in dark conditions, while 940 nm is completely invisible to the human eye. We use 940 nm for covert security applications where you do not want intruders to see the sensor locations.
Passive sensors operate in the Mid-to-Far Infrared (MIR/FIR) spectrum. They target wavelengths between 8 µm and 14 µm. This specific range matches the peak blackbody radiation of human skin. Human skin emits peak radiation at approximately 9.3 µm. By tuning the sensor to this exact band, manufacturers ensure the device ignores other heat sources like hot car hoods or industrial machinery, focusing primarily on human intruders or occupants.
Power draw differs drastically between the two architectures. Active emitters require continuous current, often drawing several milliamps to keep the LED illuminated. Passive pyroelectric ICs draw mere microamps. This massive difference dictates deployment options. When designing a system, you must calculate the total current draw to size your power supplies and battery backups correctly. A perimeter with twenty active beams requires a substantial power infrastructure.
Continuous emission limits active sensors in remote applications. They drain batteries quickly without a robust power supply. You usually need hardwired power or large solar panels to keep them running. Passive sensors excel in low-power, battery-powered, or solar-backed deployments. They remain asleep until thermal movement wakes the circuit. A standard wireless PIR sensor can run for three to five years on a single lithium battery, making installation incredibly fast and flexible.
Passive sensors face thermal degradation in high-heat environments. Ambient temperatures approaching 35°C (95°F) cause problems. The thermal delta between a human target and the background shrinks. When the background temperature matches human skin, the sensor goes blind. Active sensors maintain complete thermal stability regardless of ambient heat. They do not care if it is freezing cold or boiling hot; the optical beam remains consistent.
Active sensors suffer from atmospheric and particulate interference. Dust, fog, snow, and heavy rain scatter the optical signal. Physical obstructions attenuate the beam, causing missed detections or false triggers. If a spider builds a web across the lens, the system might register a fault. Passive sensors ignore most visual atmospheric conditions. Fog and rain do not significantly block the long-wave thermal energy, allowing PIR sensors to function well in poor weather.
| Feature | Active Infrared | Passive Infrared (PIR) |
Operating Principle | Emission and reflection/interruption | Detection of thermal radiation |
Active Emission | Yes | No |
Typical Wavelengths | 850 nm - 940 nm (NIR) | 8 µm - 14 µm (FIR) |
Detection Range | Up to hundreds of meters | Typically 10 - 30 meters |
Field of View | Narrow, linear beam | Wide, volumetric fan |
Power Consumption | High (Milliamps) | Low (Microamps) |
Primary Failure Modes | Lens blockage, fog, misalignment | High ambient heat, thermal drafts |
You must define false positives and false negatives for your environment. A false positive triggers an alarm without a valid target. A false negative ignores a valid target completely. Both scenarios compromise system integrity. In a security context, too many false positives cause guard fatigue, leading operators to ignore real alarms. In an automation context, false negatives cause machinery to crash into objects or fail to count products on a line.
Active sensors struggle with physical interference. Falling leaves, birds, or debris can break the beam. We mitigate this by using dual-beam or quad-beam towers. The system only triggers if multiple beams break simultaneously, ignoring small birds or blowing trash. Passive sensors struggle with thermal interference. HVAC drafts, direct sunlight, or rapid cloud movement alter the thermal background. We mitigate this by pointing PIR sensors away from windows and heating vents during installation.
Maximum effective range dictates hardware selection. Active break-beam sensors span hundreds of meters easily. They secure massive perimeter lines around airports, power plants, and military bases. You can daisy-chain them to cover miles of fencing. Passive sensors typically max out between 10 and 30 meters. They are strictly for localized detection. You cannot use a PIR sensor to monitor a 100-meter fence line effectively.
Scalability requires managing multiple sensors in one space. Active sensors face optical crosstalk if beams overlap. You must manage frequencies carefully. If receiver A sees the light from emitter B, the system fails. We use selectable frequency channels on the hardware to prevent this. Passive sensors do not interfere with each other. You can mount dozens in a single room safely. They just sit there listening for heat, completely unaware of neighboring sensors.
Physical footprint impacts product design and installation. Passive units offer a standalone, single-point nature. They integrate easily onto small PCBs. They require minimal housing complexity. You mount them on a wall, point them at the floor, and walk away. This simplicity makes them the go-to choice for residential security and basic commercial lighting control.
Active systems demand rigorous physical mounting. Long-range break-beam units require precise optical alignment. You must run wiring to both the emitter and receiver ends. Ground settling or wind vibration can disrupt this alignment. We mount long-range beams on dedicated concrete footings, separate from chain-link fences, to prevent wind-induced false alarms. The installation labor for active systems is significantly higher due to trenching and alignment procedures.
Active sensors dominate sterile zones like fencelines and walls. A definitive line must not be crossed. Multi-beam active photo-beams minimize wildlife-induced false alarms. They require multiple simultaneous beam breaks to trigger. We stack them in towers to create an invisible wall. If an intruder tries to climb over or crawl under, they break the beams and trigger the alarm. The linear precision is unmatched for boundary protection.
Passive sensors handle volumetric spaces effectively. Courtyards, interior entryways, and open yards require broad coverage. You need to detect general human presence across a wide angle. PIR sensors provide this coverage efficiently. We use them as a secondary layer of defense inside the perimeter. If someone breaches the active beam line at the fence, the passive sensors track their movement through the yard toward the main building.
The passive infrared sensor remains the global industry standard here. It controls occupancy lighting and climate systems. It monitors smart office space utilization perfectly. It offers unmatched cost-efficiency, low power draw, and wide-area coverage. You mount one in the ceiling, and it covers a 360-degree area below. When employees enter, the lights turn on and the AC ramps up. When the room empties, the systems power down to save energy.
Active sensors have limited use in general room automation. They are too directional. However, we do use them for doorway counting. You place a break-beam sensor across a threshold to count exactly how many people enter and exit a room. This data helps building management systems optimize HVAC airflow based on exact occupancy numbers rather than just general presence detection.
Manufacturing lines and packaging machinery demand active sensors. Conveyor systems require rapid millisecond response times. You need precision that passive thermal detection cannot provide. Active sensors detect non-thermal objects moving at high speeds reliably. They count cardboard boxes, glass bottles, or metal parts flying down a belt. The sensor triggers a PLC to actuate a diverter arm or stop the belt if a jam occurs.
Passive sensors fail completely in these industrial applications. A cardboard box does not emit a thermal signature different from the ambient factory temperature. The PIR sensor would never see it. Furthermore, the response time of a pyroelectric element is too slow to catch objects moving at conveyor speeds. You must use active photoelectric sensors for any mechanical automation task.
Deploying PIR sensors near heat sources introduces severe risks. Radiators, windows, and server racks create thermal turbulence. This turbulence mimics human movement and causes false triggers. If you point a PIR sensor at a window, the morning sun heating the glass will cause an alarm. If you mount it above a forced-air heater, the sudden blast of hot air will trip the system.
You can mitigate these risks through hardware and software. Use dual-element or quad-element sensors for differential signal processing. These sensors require the heat signature to cross multiple elements in a specific sequence to verify it is a moving target, not just a blast of hot air. Implement advanced digital signal processing (DSP) algorithms to filter out environmental noise. Apply physical masking tape to the inside of the Fresnel lens to block problem areas from the sensor's view.
Optical crosstalk occurs when multiple active sensors operate nearby. Receivers might pick up signals from the wrong emitter. Parallel lines are especially vulnerable to this interference. If you stack four beams on a wall, the bottom receiver might see the light from the top emitter bouncing off the floor. This cross-contamination prevents the system from detecting a break accurately.
Mitigate crosstalk using frequency modulation of the emitted light. Ensure strict transmitter-receiver channel separation by setting dip switches on the circuit boards. Build rigid mounting infrastructure to prevent wind-induced misalignment. Solid concrete footings keep long-range beams stable. Use a voltmeter during installation to measure the receiver voltage, ensuring you have achieved peak optical alignment before locking down the mounting brackets.
Neither technology is inherently superior to the other. Selection is strictly dictated by your physical environment. You must choose between linear precision and volumetric efficiency. Evaluate your targets and power constraints carefully before specifying hardware. A poorly chosen sensor will cause endless maintenance headaches and operational downtime.
Choose an active sensor for exact line-crossing detection. Use it for high-speed response or non-heat-emitting objects. Choose a passive sensor for wide-area human detection. Use it when operating on a strict battery or solar power budget where continuous current draw is impossible.
Follow these actionable next steps for your project:
Audit your installation site for thermal and physical interference sources.
Review component datasheets to verify operating temperature limits.
Calculate your total power budget to determine if continuous emission is viable.
Test sensor alignment and masking in a controlled mockup environment.
Verify mounting surface stability to prevent wind-induced false alarms.
A: No. PIR sensors require a thermal signature to move across distinct detection zones created by the Fresnel lens to trigger a voltage change in the pyroelectric element. If an object is completely stationary, no change in infrared flux is detected.
A: Yes. Active infrared sensors emit their own infrared light (typically in the near-infrared spectrum), which is invisible to the human eye but easily detected by the matched receiver, making them entirely independent of ambient visible light.
A: False alarms are primarily caused by physical obstructions like heavy rain, dense fog, falling leaves, or small animals breaking the beam, as well as physical misalignment of the transmitter and receiver due to wind, structural vibration, or ground settling.
A: Standard glass blocks the long-wave infrared wavelengths (8 µm to 14 µm) detected by passive sensors, preventing them from seeing through windows. Active sensors operating in the near-infrared spectrum (850 nm to 940 nm) can often penetrate clear glass, though surface reflections and attenuation can degrade performance.
A: Active break-beam sensors are generally preferred for strict, long-distance perimeter lines (PIDS) due to their long range and immunity to ambient temperature changes. However, passive sensors are frequently integrated alongside them to provide volumetric coverage of the inner compound.
A: As the ambient air temperature approaches the surface temperature of the human body (approx. 37°C / 98.6°F), the thermal contrast (delta) between the target and the background shrinks. This reduction in contrast significantly reduces the sensor's detection range, sensitivity, and overall accuracy.
