Selecting a sensor goes far beyond a simple technical purchase. It acts as your primary safeguard against catastrophic overflow, pump burnout, and costly process downtime. Relying on the wrong measurement technology quickly introduces severe operational risks. You might face false readings triggered by environmental factors like heavy surface foam, unexpected turbulence, or stubborn scale buildup. When control systems act on bad data, whole processes shut down.
We will explore the physical working principles driving different sensor technologies today. You will learn exactly how these devices translate fluid height into actionable data. We aim to help technical buyers and engineers confidently evaluate available options. By understanding the core mechanics, you can shortlist and specify the most reliable solution for your specific operational environment.
The fundamental mechanism of a water level sensor relies on either physical contact (buoyancy, conductivity) or non-contact measurement (sound waves, radar, pressure).
Choosing between a continuous sensor and a point-level water level switch dictates whether you get real-time volume data or simple on/off automation.
Application variables—such as tank pressure, fluid temperature, and turbulence—will immediately disqualify certain sensor principles.
System longevity depends heavily on matching the sensor's physical properties to the fluid's chemical and biological realities (e.g., avoiding moving parts in corrosive liquids).
Every water level sensor converts a physical change into a readable electrical signal. This fundamental baseline applies across all industrial fluid management systems. They track the rising or falling fluid height inside your vessels. The internal mechanism translates this physical movement into data. Control systems then use this data to automate pumps and alarms.
Point-level measurement monitors specific, fixed locations inside a tank. A basic water level switch operates using this threshold principle. It triggers a discrete binary signal when water reaches a predetermined height. The circuit either opens or closes entirely. They serve as exceptional tools for high-level alarms and low-level fail-safes. You deploy them to stop a pump before a tank overflows.
Common Mistakes: Relying on a single point-level device for critical fail-safes. Redundancy is crucial. Always install a secondary backup switch slightly above your primary high-level alarm.
Continuous sensors measure exact fluid depths across the entire tank range. They do not wait for the liquid to hit a specific threshold. Instead, they constantly feed proportional data to your control architecture. They typically utilize industry-standard 4-20mA analog signals or digital protocols. This continuous profiling allows for highly precise inventory management. You can see the exact volume remaining at any given second.
You must ask one fundamental question before specifying any hardware. Do you need to know exactly how much water remains in the tank? Or do you simply need to know if the vessel is too full or too empty? Point-level devices provide simple binary answers. Continuous sensors deliver complete operational visibility. Your specific automation needs will heavily dictate this initial choice.
Understanding the exact physical principles behind each technology prevents catastrophic misapplications. Different environments demand drastically different measurement approaches. Let us examine the most common sensor types operating in industrial settings today.
Mechanical floats rely entirely on the principle of buoyancy. A physical float rests directly on the liquid surface. This float contains a permanent magnet inside its housing. The float rises alongside the fluid surface. The internal magnet eventually aligns with a hermetically sealed reed switch located in the stem. This alignment closes the circuit and sends a signal.
Best for: Clean water applications demanding reliable, straightforward automation.
Limitations: Moving parts frequently suffer from mechanical binding. Debris, biological growth, and chemical scaling will eventually restrict the float movement.
Hydrostatic devices sit completely submerged at the bottom of your vessel. They measure the exact pressure exerted by the liquid column resting directly above them. The sensor calculates the total fluid depth based on the specific gravity of the liquid. They provide highly accurate continuous measurement data.
Best for: Deep water wells, exceptionally tall storage tanks, and vented atmospheric vessels.
Limitations: They require regular calibration if the fluid density changes. They cannot operate accurately in sealed, pressurized tanks without specialized differential pressure configurations.
Ultrasonic transmitters emit high-frequency acoustic waves from the top of your tank. These sound waves travel downward through the air space. They strike the liquid surface and immediately bounce back. The sensor calculates the exact time it takes for this echo to return. This "time-of-flight" calculation determines the distance to the water surface.
Best for: Corrosive liquids and hazardous environments. They never touch the fluid, eliminating chemical compatibility concerns and biofouling risks.
Limitations: Surface foam absorbs acoustic signals. Heavy chemical vapors distort the sound wave velocity. Internal tank obstructions can create false echoes.
Capacitive sensors utilize the liquid itself as a dielectric medium. You insert a conductive probe directly into the tank. The probe and the tank wall act as two capacitor plates. As the fluid level rises, the dielectric material between these plates increases. This physical shift changes the overall electrical capacitance predictably.
Best for: Non-metallic storage vessels and environments experiencing high temperature or pressure fluctuations.
Limitations: Changes in the fluid's inherent dielectric constant will severely skew your readings. They require precise initial calibration based on the specific liquid being measured.
| Technology Type | Working Principle | Measurement Style | Primary Vulnerability |
Mechanical Float | Buoyancy / Magnetic Field | Point-Level | Physical scaling and debris binding |
Hydrostatic | Liquid Column Pressure | Continuous | Fluid density variations |
Ultrasonic | Acoustic Time-of-Flight | Continuous | Surface foam and heavy vapors |
Capacitive | Dielectric Shift | Both Available | Dielectric constant fluctuations |
Many facilities confuse the concepts of fluid level and fluid flow. Addressing this distinction ensures you specify the right safety interlocks. Level measurement tracks static liquid accumulation inside a holding vessel. Flow detection monitors dynamic fluid movement traveling through your piping infrastructure. You need both to maintain a healthy automated system.
A water flow sensor measures the actual velocity or total volume of liquid transiting through a pipe. They use various internal mechanisms to capture this data. Some rely on spinning paddlewheels. Others utilize turbine blades or electromagnetic induction. They allow operators to track real-time resource consumption. They also monitor overall system health by detecting abnormal flow rates.
A dedicated water flow switch acts as a critical safety interlock. It ensures downstream equipment only operates when fluid actively moves through the pipe. You install them primarily to protect large industrial pumps. If a tank runs empty, the flow immediately stops. The switch detects this cessation and instantly cuts power to the pump. This immediate reaction prevents catastrophic dry-running.
Industrial systems rarely rely on a single monitoring device. Engineers combine level and flow monitoring to create fully automated loops. A water level control switch manages the bulk tank volume. It signals the main feed pump to turn on when levels drop. Simultaneously, the flow switch monitors the discharge pipe. They wire these components directly into Programmable Logic Controllers (PLCs). This creates a highly responsive, fail-safe fluid management architecture.
Selecting the optimal device requires a systematic evaluation of your specific operating conditions. No single technology performs perfectly in every environment. You must analyze four critical pillars before making a final specification.
Fluid Characteristics: The physical properties of your liquid dictate the basic contact versus non-contact decision. Highly viscous liquids easily coat physical probes. Aggressive chemicals destroy standard metal housings. The presence of suspended solids makes mechanical floats entirely unviable. You must map these fluid realities first.
Environmental Variables: The atmosphere directly above your liquid heavily influences non-contact devices. Heavy surface turbulence scatters acoustic waves. Thick vapor layers distort radar signals. Rapid temperature drops cause condensation to form directly on transducer faces. You must also evaluate complex tank geometry, as internal ladders or agitators create false echo returns.
Integration and Scalability: Your selected hardware must communicate seamlessly with existing infrastructure. Review your required electrical outputs carefully. Simple alarm systems might only need a basic Relay or NPN/PNP output. Complex SCADA networks require proportional 4-20mA signals. Modern smart factories often demand advanced digital protocols like Modbus or IO-Link.
Regulatory and Compliance Needs: Industrial deployments often face strict regulatory oversight. You must identify required safety certifications early in the design phase.
Potable water systems demand FDA or NSF certified materials.
Explosive environments require strict ATEX or IECEx intrinsic safety ratings.
Deep well applications mandate IP68 ratings for continuous, long-term submersion.
Best Practices: Always request a full material compatibility chart from the manufacturer. Verify that both the sensor housing and the cable sheathing can withstand prolonged exposure to your specific chemical mixture.
After understanding how different water level sensors work, the next step is matching the sensing principle to the actual container, liquid type, installation space, and control requirement. XKC provides both non-contact and contact-type liquid level sensing options for different application environments, helping engineers build safer and more reliable liquid detection systems.

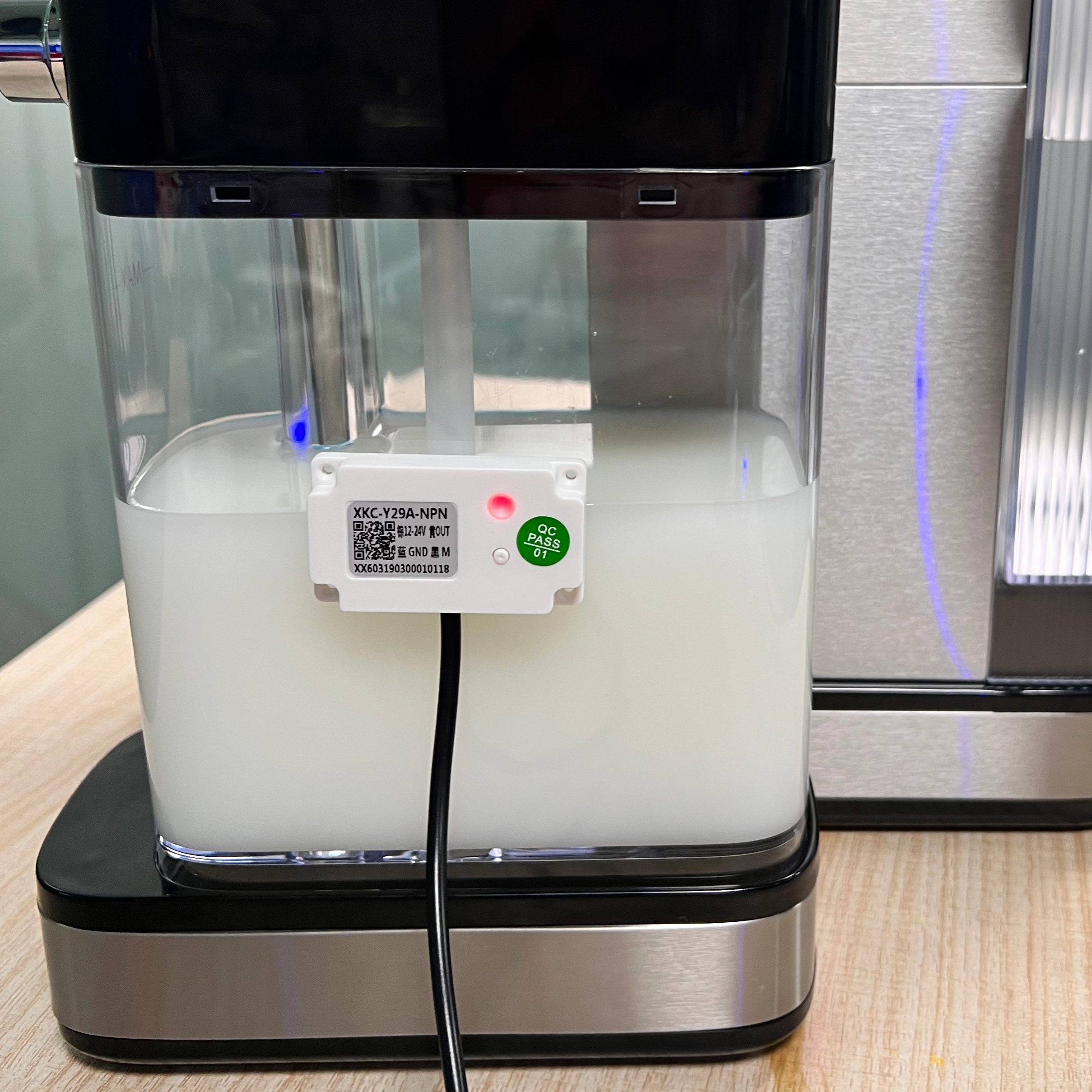

For many plastic, glass, or other non-metallic containers, XKC non-contact liquid level sensors offer a practical through-wall detection solution. These sensors are installed outside the container, allowing liquid level detection without direct contact with the liquid. This design helps reduce contamination risk, avoid corrosion caused by long-term immersion, and minimize maintenance issues related to moving parts or probe fouling.
XKC's product range includes compact liquid level sensors, pipeline and tube-mounted sensors, wall-mounted liquid sensors, water leakage sensors, portable liquid level detectors, and liquid level controllers. Depending on the project requirements, these devices can be used for high/low level alarms, overflow prevention, pump control, dry-run protection, leakage detection, and multi-point level monitoring.
For OEM equipment manufacturers and system integrators, XKC can also support application-based selection and customization. Parameters such as container wall thickness, liquid characteristics, installation position, output signal, controller pairing, and mounting structure can all affect sensor performance. Working with a sensor manufacturer during the design stage helps reduce trial-and-error and improves long-term system reliability.
Theoretical performance on a datasheet rarely matches the harsh realities of field installation. Engineers must anticipate specific physical constraints during the mounting process. Failing to account for these limitations leads to erratic automation behavior.
Non-contact ultrasonic devices suffer from an inherent "dead zone." We often call this the blanking distance. The sensor cannot measure any liquid that enters this immediate zone directly below the transducer face. If you mount the device too low, rising water will breach this dead zone and blind the system. You must install the transmitter high enough to accommodate maximum fill levels.
Flow monitoring equipment presents different installation challenges. They require a specific length of straight, unobstructed piping immediately upstream and downstream. This straight run ensures a perfectly laminar flow profile. Installing these devices too close to elbows or valves introduces heavy turbulence. This turbulence severely degrades measurement accuracy.
Environmental fluctuations frequently cause calibration drift in contact-based devices. Hydrostatic transmitters rely on a constant fluid density. If your process liquid undergoes significant temperature changes, its specific gravity will shift. This physical shift artificially skews the pressure reading. Operators will see a changing level reading even if the actual volume remains completely static.
Capacitive probes face similar vulnerabilities. Changes in fluid temperature alter the liquid's dielectric properties. They require routine recalibration if the fluid composition changes between batches. You must document these potential drifts and schedule preventative maintenance checks accordingly. Proactive monitoring prevents false positive alarms from shutting down your production lines.
Understanding the underlying physical working principle remains the only reliable way to predict sensor behavior. You cannot rely on generic product descriptions to safeguard critical infrastructure. Evaluating the exact mechanics allows you to anticipate environmental vulnerabilities before installation.
Your next step involves mapping your specific operational environment. Document your tank dimensions, anticipated temperature ranges, and precise fluid properties. Define your exact control logic needs. Determine if you require continuous volume profiling or simple threshold alarms. You should gather this data before ever reviewing a manufacturer datasheet.
Do not leave critical safety interlocks to chance. If you face complex environmental variables like heavy agitation or corrosive chemicals, seek professional guidance. Consult with a dedicated fluid control specialist to request a thorough technical evaluation for your specific application.
A: A water level sensing switch provides a basic point-level binary output. It simply turns on or off when water reaches a specific height. Continuous sensors provide real-time, proportional measurement across the entire depth of the tank.
A: False ultrasonic readings usually stem from acoustic interference. Heavy surface foam absorbs the sound waves. Condensation forming on the transducer face blocks the signal. Internal tank obstructions, like pipes or ladders, can also bounce the signal back prematurely.
A: Some heavy-duty switches carry high enough current ratings to run small pumps directly. However, standard industrial practice strongly discourages this. You should wire the switch to a dedicated relay or contactor to handle the electrical load safely.
A: No. Cheap exposed-trace PCB sensors corrode rapidly due to electrolysis when submerged. They completely lack the necessary electrical isolation, robust IP ratings, and structural reliability required for safe commercial fluid management applications.
