The two most common complaints from household water dispenser users are identical:

water overflowing onto the floor, or the heating tank dry-burning with no automatic shutdown.

Tear the machine down and the root cause is almost always the same — level detection has

failed. Traditional float switches accumulate limescale on the internal magnetic ring, adding

weight until the float jams on the guide rail. Photoelectric sensors rely on a clear optical lens;

the constant hot-cold cycling inside a dispenser coats the inner wall with condensation

droplets and algae biofilm, blocking the light path. The controller misreads "no water" and

keeps heating — that is dry-burning.

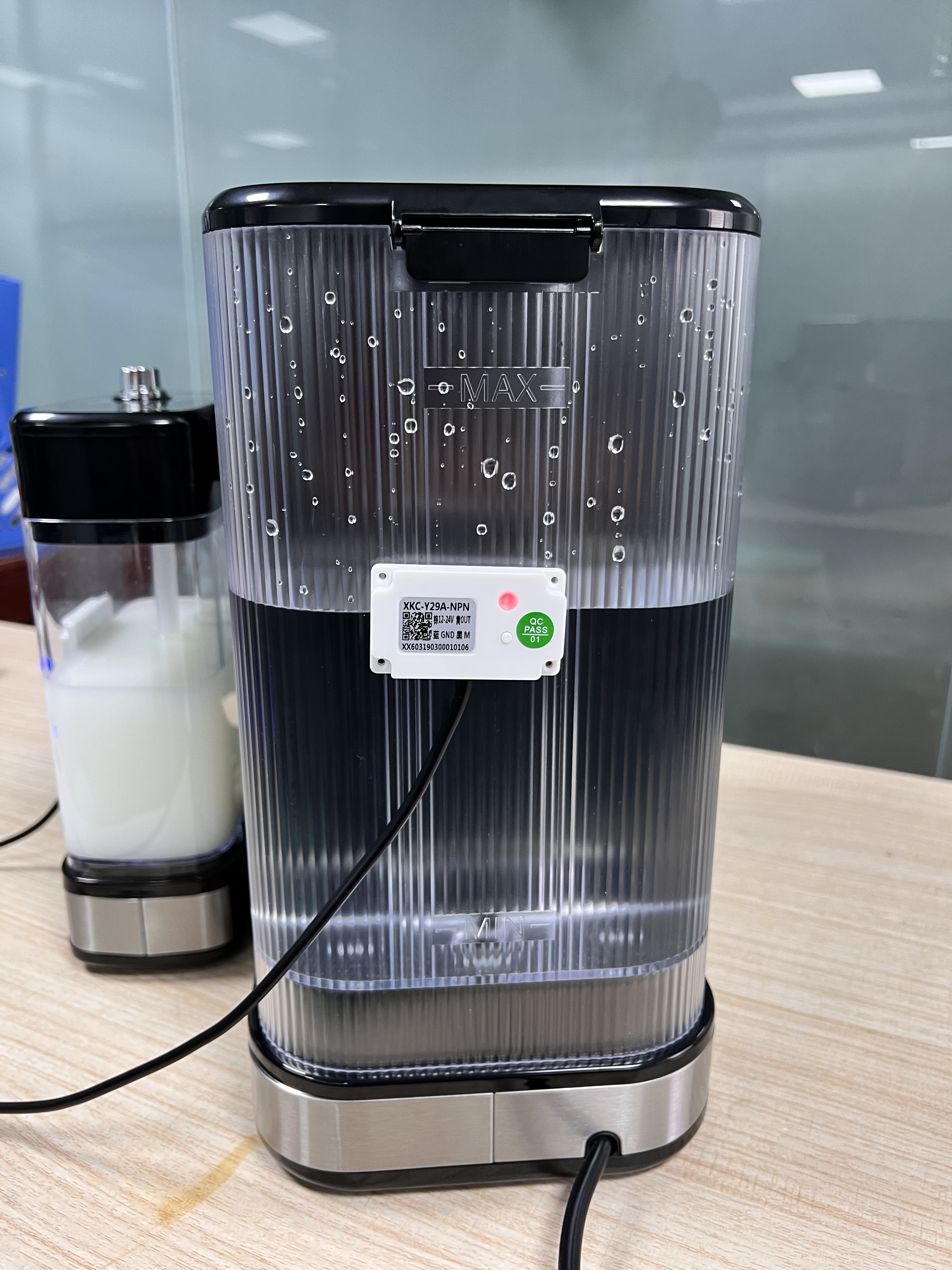

Shenzhen Xingkechuang Technology Co., Ltd. solves this with a non-contact capacitive level

sensor: the probe sticks to the outside wall of the plastic water tank. Based on the capacitive

principle, it exploits the dielectric gap between water (εr ≈ 80) and air (εr ≈ 1). When the

liquid level crosses the detection line, the equivalent capacitance jumps and the circuit

outputs a clean switching signal. The key is threshold discrimination — a sub-100-micron

condensation film on the inner wall produces only a tiny ΔC, far below the real water-level

trigger, so the algorithm discards it as noise.

This solution never contacts the liquid, leaving the drinking-water path completely

uncontaminated. Installation requires no drilling; just adhesive backing or a small screw

mount. For dispenser manufacturers, the return-and-repair rate drops from "float failure in

~18 months" to stable-from-factory
