Why Semi-Auto Coffee Machines Dry-Boil Or Overflow? Level Sensor Failure Solved by Capacitive Principle Non-Contact Solution

Home semi-automatic coffee machine users commonly face two problems: the water tank clearly has water yet the machine reports "low water" and shuts down, or overfilling causes water to spill into the chassis and burn the main board. Disassembly reveals the root cause is almost always level sensor failure. Float switches rely on mechanical buoyancy — coffee scale builds up on the guide rod, and the float jams within three months. Optical sensors suffer too: their lenses are fogged by steam condensation and coffee oil mist, blocking the light path and falsely reading "full" so the machine stops intake, then falsely reading "empty" on the next cup and dry-boiling the heating block.

Shenzhen Xingkechuang Technology Co., Ltd.'s XKC-Y29A non-contact level sensor changes the measurement dimension entirely: the probe sticks to the outside wall of the PP/ABS water tank. Based on the capacitive principle, water has a dielectric constant εr≈80 while air is εr≈1. When the real water level covers the electrode, the system capacitance jumps significantly, and the chip compares calibrated empty/full values to flip the output. The ΔC caused by inner-wall condensation film, hanging water beads, and coffee oil mist is minimal — far below the trigger threshold — and is simply discarded by the algorithm.

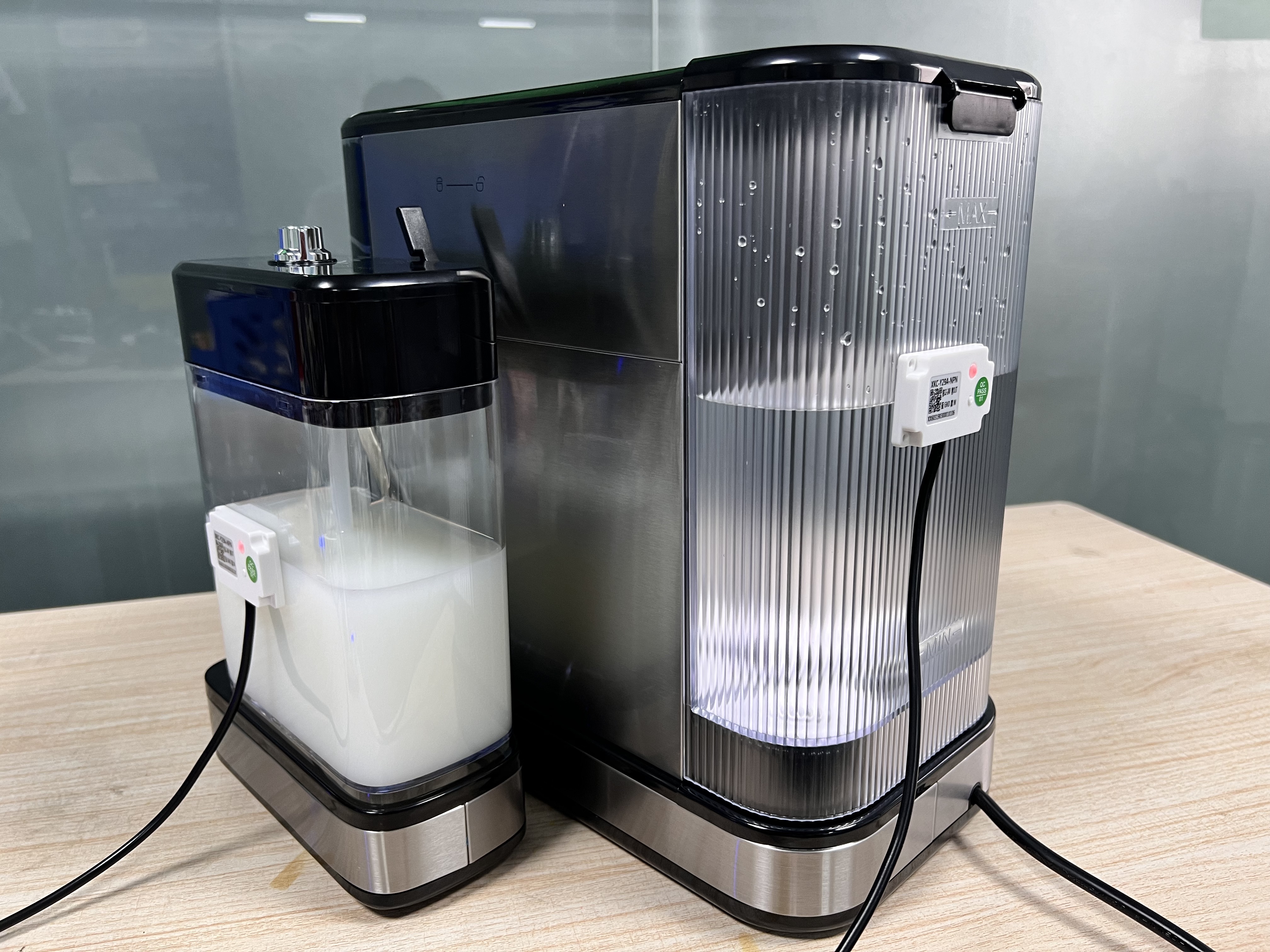

The sensor never contacts the liquid, causing zero contamination to the drinking water path. It penetrates 1–10 mm non-metallic tank walls and mounts with adhesive backing or screws, allowing manufacturers to replace old solutions without modifying molds. For semi-automatic models, dual-point external mounting at low and high level points closes the loop.
