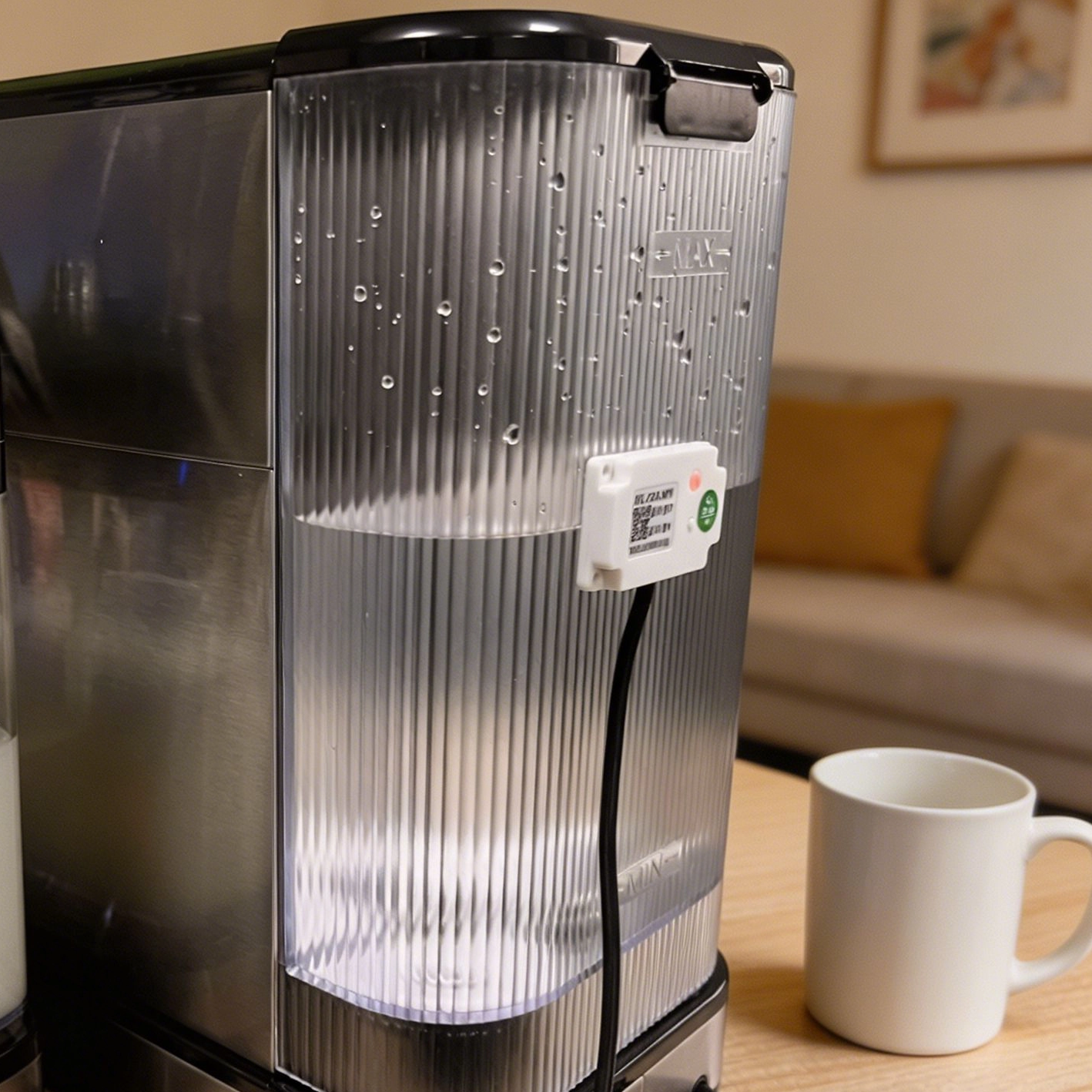

Integrating a liquid level sensor into a coffee machine’s PCB requires careful attention to power supply stability, signal noise, and connector compatibility. The XKC-Y29A operates at 5V–24V DC, with a current draw below 5mA, making it compatible with most control boards.
Its output options include high/low logic and NPN open collector, allowing direct connection to MCU GPIO pins or relay drivers. Engineers should place the sensor cable away from high-current AC lines to minimize EMI. Firmware can implement hysteresis thresholds to prevent chatter during wave motion.
With proper integration, the XKC-Y29A becomes a seamless part of the machine’s safety and automation systems.
